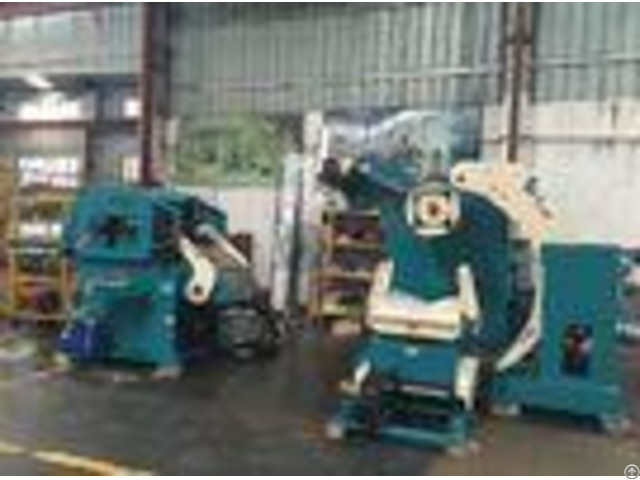

Automation Nc Servo Coil Feeder Straightener Decoiler Hydrauilc Uses 7 Leveling Roller - China

Automation Nc Servo Coil Feeder Straightener Decoiler Hydrauilc Home 1 - Features 1).

Uses 7 leveling roller, effectively improve the leveling precision materials.

2).

The mechanical structure of innovation, so that the whole machine working space contracted to the minimum required.

3).

Operation panel with color LCD display, touch screen size, high clear operation picture, coordination operational safety protection system, even if is the primary user can also operate relieved.

4).

The system user-friendly design operating sound, preparatory work reduction.

Advanced automatic diagnosis system, assists the operator to control this aircraft's remarkable performance quickly.

5).

Using Japanese servo motor, to ensure the high precision feeding.

6).

Feeding roller and leveling roller through a special heat treatment, high hardness, wear-resistant, long life.

7).

The design concept of safety factor is enhanced, makes the equipment safety using time.

8).

Machine color (Customized): subject-- Milk white Y11;Warning-- Orange red(RAL2001) 2 - Specification - - - - Specification | Model | MAC4-400 | MAC4-600 | MAC4-800 | MAC4-1000 | MAC4-1300 | Stock Width(mm) | 70~400 | 70~600 | 70~800 | 70~1000 | 70~1300 | Stock Thickness(mm) | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | Max.

Coil Weight(kg) | 5000 | 5000 | 7000 | 7000 | 7000 | Max.

Coil O.D.(mm) | 1400 | 1400 | 1400 | 1400 | 1400 | Coil I.D.(mm) | 508 | 508 | 508 | 508 | 508 | Feed Length(mm) | ~500* | ~500* | ~500* | ~500* | ~500* | Max.

Line Speed(m/min) | 16~24 | 16~24 | 16~24 | 16~24 | 16~24 | Work Roll Number(piece) | upper 4 | upper 4 | upper 4 | upper 4 | upper 4 | down 3 | down 3 | down 3 | down 3 | down 3 | Feed Roll number(set) | 1 | 1 | 1 | 1 | 1 | Main Motor | AC5.5 | AC7.5 | AC7.5 | AC11.0 | AC11.0 | Mandrel Expansion | Hydrauilc | Hydrauilc | Hydrauilc | Hydrauilc | Hydrauilc | Reel Motor(kw) | 2.2 | 2.2 | 3.7 | 3.7 | 3.7 | Power(v) | 3 Phase 220V/380V/50HZ | Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 | 0.49 | - - - - - - - - Straightening Performance | Model | MAC4-400 | MAC4-600 | MAC4-800 | MAC4-1000 | MAC4-1300 | Stock Thickness (mm) | 0.6~1.3 | 400 | 600 | 800 | 1000 | 1300 | 2.0 | 2.3 | 2.5 | 1170 | 2.8 | 933 | 933 | 3.2 | 714 | 714 | 714 | 4.0 | 457 | 457 | 457 | 457 | 4.5 | 361 | 361 | 361 | 361 | 361 | 5.0 | 293 | 293 | 293 | 293 | 293 | 6.0 | 203 | 203 | 203 | 203 | 203 | - - - - FAQ: Q1: What kinds of machines do you have? Our main products are: Nc Servo Roll Feeder, Uncoiler, Straightener, 3 in1 Straightener Feeder, Transfer systems, Press Feeding Line., etc Q2: Is your equipment standard or customized? Both, we can OEM & ODM with customers.

Q3: What are your equipments certification? All our items are coming with CE certifications.

Q4: How did your company's quality system work? QUALITY IS OUR CULTURE Our quality is not the best in the world, and the price is not the cheapest.

But we can provide you excellent products to defeat your competitors.

Q5: How long is the warranty period of the machine? We offer free service with a warranty period of one year, If it is operate in reasonable, the machine can be used more than 10 years.

Q6: Is it possible to be a foreign agent and distributor? If you are confidence and excellent service for after-sales, then welcome to be our agents or distributors all over the world.

Q7: Whats your payment? T/T, D/P, L/C, Western Union., etc Q8: Whats the delivery? TIME IS GOLD for you and for us, so we have professional team work and production line can make nice quality in short time.

Service: 1 - Pre-Sales Service: We have professional designers to meet the different requirement.

2 - After-Sales service: We have an efficient team to meet 24*7 all day service.

3 - Full-Service: Actively cooperate with customers to deal with problems in equipment using.

4 - Engineers can provide service machinery overseas.
