Automation Nc Servo Decoiler Straightener Feeder Uncoiler Hydrauilc - China
price: contact company for price

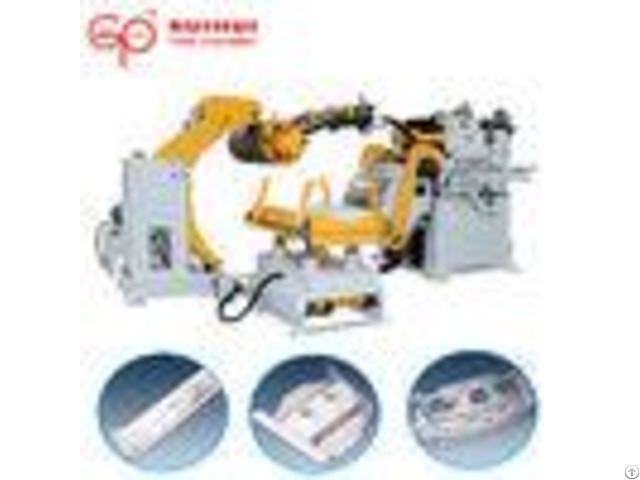

Welcome OEM & ODM Automation Machine Nc Servo Straightener Feeder and Uncoiler Make Material Straightening(MAC4-800F) This series nandles material form 600mm to 1, 300mm wide and up to 6.0mm thick.
The 11 work rolls offer an extraordinary level of flatness to the materials.
The HL series featured that adapting all rolls driven with universal joint (MAC4-F) and strengthen body flame for straightening high tension materials.
A straightener port opening mechanism has been added.
allowing for improved maintenance and cleaning the rolls.
The HL series underwent a new model for meeting the demand of both productivity and efficiency in pressroom.
1 - Easy Access to Work Rolls: The work rolls on the HL can be opened to a maximum of 20 degrees, making roll cleaning much easier, The machine was designed to allow easy access to the inside structure for improved maintenance.
2 - Coil Material Entry Support Assembly: Save Man Power Increase Safety, Easily move the material into pinch rollers.
Specifications - - - - Model | MAC4-600F | MAC4-800F | MAC4-1000F | MAC4-1300F | Stock Width(mm) | 70~600 | 70~800 | 70~1000 | 70~1300 | Stock Thickness(mm) | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | Max.
Coil Weight(kg) | 5000 | 5000 | 7000 | 10000 | Max.
Coil O.D.(mm) | 1400 | 1400 | 1400 | 1400 | Coil I.D.(mm) | 508 | 508 | 508 | 508 | Feed Length(mm) | ~500* | ~500* | ~500* | ~500* | Max.
Line Speed(m/min) | 16~24 | 16~24 | 16~24 | 16~24 | Work Roll Number(piece) | upper 6/lower 5 | upper 6/lower 5 | upper 6/lower 5 | upper 6/lower 5 | Feed Roll number(set) | 1 | 1 | 1 | 1 | Main Motor | AC7.5 | AC11.0 | AC11.0 | AC11.0 | Mandrel Expansion | Hydrauilc | Hydrauilc | Hydrauilc | Hydrauilc | Reel Motor(kw) | 2.2 | 2.2 | 3.7 | 7.5 | Power(v) | 3 Phase 220V/380V/50HZ | Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 | - - - - Straightening Performance: - - - - Model | MAC4-600F | MAC4-800F | MAC4-1000F | MAC4-1300F | Stock Thickness (mm) | 0.8~2.3 | 600 | 800 | 1000 | 1300 | 2.8 | 933 | 933 | 3.2 | 714 | 714 | 714 | 4.0 | 457 | 457 | 457 | 457 | 4.5 | 361 | 361 | 361 | 361 | 5.0 | 293 | 293 | 293 | 293 | 6.0 | 203 | 203 | 203 | 203 | - - - -
Company Contact:
- Phone: 86-769-89296726
- Address: ChuangXing Road,BaiSha 5 Village,JinShan Industrial Dist, HuMen, DongGuan, GuangDong, China, DongGuan , GuangDong , China
- Email:
Published date: April 8, 2018
- Business Description: In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and ruihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industry, and investment less.
