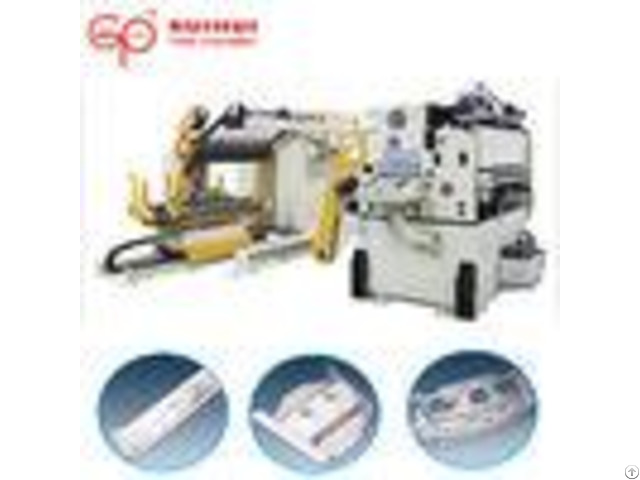

Electric Eye Loop Control Power Press Decoiler Straightener Feeder Width 1300mm - China

Width 1300mm Thckness 6mm Power Press Decoiler Straightener Feeder Features Material thickness: 0.6-6.0mm Width: 70-1300mm Standard Accessory: Electric Eye Loop Control System Feed and Straightener rolls with a hard chromic finished Outgoing catenary to assist and Support the material Feeding line easily adjusts by advanceworm gear screw jacks device Reference In dilator adjuster Option Accessory Hydraulic Mandrel Expansion Die-high electric conditioning Uncoiler- Inverter Device Hydraulic Material Feed- In Cart Hold down arms device The uncoil contain the butterfly brakes air compressor Specifications: - - - - Model | MAC4-600F | MAC4-800F | MAC4-1000F | MAC4-1300F | Stock Width(mm) | 70~600 | 70~800 | 70~1000 | 70~1300 | Stock Thickness(mm) | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | Max.

Coil Weight(kg) | 5000 | 5000 | 7000 | 10000 | Max.

Coil O.D.(mm) | 1400 | 1400 | 1400 | 1400 | Coil I.D.(mm) | 508 | 508 | 508 | 508 | Feed Length(mm) | ~500* | ~500* | ~500* | ~500* | Max.

Line Speed(m/min) | 16~24 | 16~24 | 16~24 | 16~24 | Work Roll Number(piece) | upper 6/lower 5 | upper 6/lower 5 | upper 6/lower 5 | upper 6/lower 5 | Feed Roll number(set) | 1 | 1 | 1 | 1 | Main Motor | AC7.5 | AC11.0 | AC11.0 | AC11.0 | Mandrel Expansion | Hydrauilc | Hydrauilc | Hydrauilc | Hydrauilc | Reel Motor(kw) | 2.2 | 2.2 | 3.7 | 7.5 | Power(v) | 3 Phase 220V/380V/50HZ | Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 | - - - - Straightening Performance: - - - - Model | MAC4-600F | MAC4-800F | MAC4-1000F | MAC4-1300F | Stock Thickness (mm) | 0.8~2.3 | 600 | 800 | 1000 | 1300 | 2.8 | 933 | 933 | 3.2 | 714 | 714 | 714 | 4.0 | 457 | 457 | 457 | 457 | 4.5 | 361 | 361 | 361 | 361 | 5.0 | 293 | 293 | 293 | 293 | 6.0 | 203 | 203 | 203 | 203 | - - - - Products:
