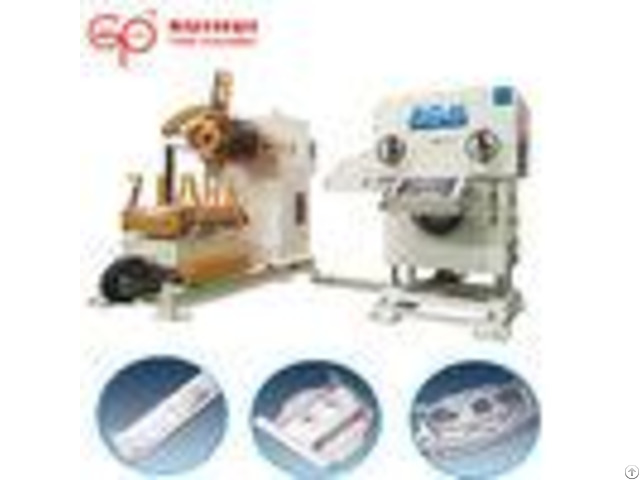

Hydraulic 3 In 1 Pressing Steel Coil Straightening Machines Decoiler - China

Hydraulic 3 In 1 Pressing machine Metal Sheet Straightening Machine Decoiler Specification: - - - - Model | MAC2-400 | MAC2-500 | MAC2-600 | MAC2-800 | Stock Width(mm) | 50-400 | 50-500 | 50-600 | 50-800 | Stock Thickness(mm) | 0.3~3.2 | 0.3-3.2 | 0.3-3.2 | -3.2 | Max.

Coil Weight(kg) | 3000 | 3000 | 3000 | 5000 | 5000 | 7000 | Max.

Coil O.D.(mm) | 1200 | 1200 | 1200 | | Coil I.D.(mm) | 8 | 8 | 508 | 508 | Feed Length(mm) | ~500* | ~500* | ~500* | ~500* | Max.

Line Speed(m/min) | 16-24 | 16-24 | 16-24 | 16-24 | Work Roll Number(pieces) | upper 6 lower 5 | upper 6 lower 5 | upper 6 lower 5 | upper 6 lower 5 | Feed Roll Number(set) | 1 | 1 | 1 | 1 | Main Motor(kw) | AC2.9 | AC2.9 | AC4.4 | AC4.4 | Mandrel Expansion | hydraulic | hydraulic | hydraulic | hydraulic | Reel Motor(kw) | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 3.7 | Power(V) | 3 Phase 220V/380V/50HZ | Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 | - - - - Straigtening performance: - - - - tock Thicknees (mm) | Stock Width (mm) | 0.3 | 400 | 500 | 600 | 800 | 0.4 | 0.6 | 0.8 | 1.0 | 1.2 | 1.4 | 1.6 | 470 | 470 | 1.8 | 400 | 400 | 2.0 | 360 | 360 | 2.3 | 300 | 300 | 300 | 300 | 2.5 | 230 | 230 | 230 | 230 | 2.8 | 150 | 150 | 150 | 150 | 3.2 | 110 | 110 | 110 | 110 | - - - - *1: (Pneumatic): Option in case of pneumatic mandrel expansion is provided, refer to coil weight.

*The above flgures are the material having yield strength of 245 N/mm2 FAQ: Q1: What kinds of machines do you have? Our main products are: Nc Servo Roll Feeder, Uncoiler, Straightener, 3 in1 Straightener Feeder, Transfer systems, Press Feeding Line., etc Q2: Is your equipment standard or customized? Both, we can OEM & ODM with customers.

Q3: What are your equipments certification? All our items are coming with CE certifications.

Q4: How did your company's quality system work? QUALITY IS OUR CULTURE Our quality is not the best in the world, and the price is not the cheapest.

But we can provide you excellent products to defeat your competitors.

Q5: How long is the warranty period of the machine? We offer free service with a warranty period of one year, If it is operate in reasonable, the machine can be used more than 10 years.

Q6: Is it possible to be a foreign agent and distributor? If you are confidence and excellent service for after-sales, then welcome to be our agents or distributors all over the world.

Q7: Whats your payment? T/T, D/P, L/C, Western Union., etc Q8: Whats the delivery? TIME IS GOLD for you and for us, so we have professional team work and production line can make nice quality in short time.

Service: 1 - Pre-Sales Service: We have professional designers to meet the different requirement.

2 - After-Sales service: We have an efficient team to meet 24*7 all day service.

3 - Full-Service: Actively cooperate with customers to deal with problems in equipment using.

4 - Engineers can provide service machinery overseas.
