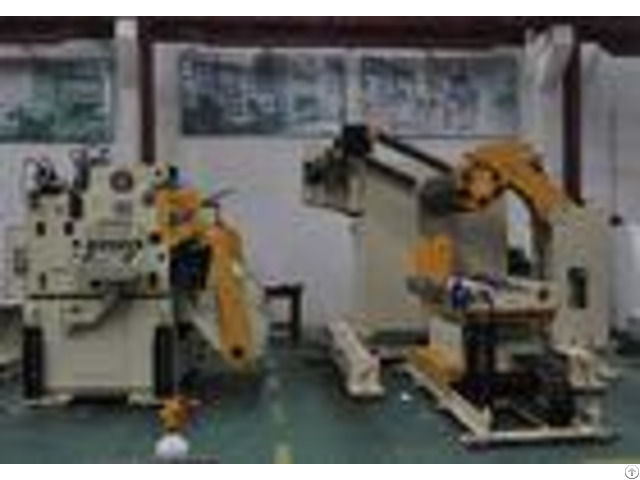

Japan Mitsubishi PLC Control Decoiler Straightener Feeder For Press Machine Detail Information About Decoiler Straightener Feeder: 1 - Decoiler Straightener Feeder Introduction: Our Decoiler Straightener Feeder speed can reach 0-22 m /min.

And suitable all kinds of metal coil Uncoiling, Straightening and automatic Feeding.

Our Decoiler Straightener Feeder are suitable 0.5-6.0 mm thickness all metal coil uncoiling, straightening and feeding.

Our Decoiler Straightener Feeder widely used to computer, mobile phone, automobile industry, appliances manufacturing, medical apparatus and instruments, Car Accessories, hardware & Metal parts etc industry.

And matched all kinds of press machine.

2 .

Decoiler Straightener Feeder Feature And Advantage: 1 - Save factory area.

3 machines together one.

2 - High precision: +/-0.05 mm 3 - Suitable for material thickness : 0.5-6.0 mm.

4 - Suitable for all kinds of metal coil automatic straightening and feeding, Easy to operate.

5 - Suitable for metal parts, electron, electrical appliance, toy and auto parts continuous pressing production, straightening and feeding.

6 - Japan servo motor, PLC and other electrical parts, with little malfunction and long using time.

High quality, lowest maintenance.

7 - Can feed different length at one time, easy operation, safe and high stability.

8 - We can customize the machine.

9 - Fast speed: 0-22 m/min.

10 - Coil car, pressing arm, conveyor belt, shearing machine, oiling machine etc.

for choosing.

Specifications: - - - - Model | MAC4-600F | MAC4-800F | MAC4-1000F | MAC4-1300F | Stock Width(mm) | 70~600 | 70~800 | 70~1000 | 70~1300 | Stock Thickness(mm) | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | Max.

Coil Weight(kg) | 5000 | 5000 | 7000 | 10000 | Max.

Coil O.D.(mm) | 1400 | 1400 | 1400 | 1400 | Coil I.D.(mm) | 508 | 508 | 508 | 508 | Feed Length(mm) | ~500* | ~500* | ~500* | ~500* | Max.

Line Speed(m/min) | 16~24 | 16~24 | 16~24 | 16~24 | Work Roll Number(piece) | upper 6/lower 5 | upper 6/lower 5 | upper 6/lower 5 | upper 6/lower 5 | Feed Roll number(set) | 1 | 1 | 1 | 1 | Main Motor | AC7.5 | AC11.0 | AC11.0 | AC11.0 | Mandrel Expansion | Hydrauilc | Hydrauilc | Hydrauilc | Hydrauilc | Reel Motor(kw) | 2.2 | 2.2 | 3.7 | 7.5 | Power(v) | 3 Phase 220V/380V/50HZ | Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 | - - - - Straightening Performance: - - - - Model | MAC4-600F | MAC4-800F | MAC4-1000F | MAC4-1300F | Stock Thickness (mm) | 0.8~2.3 | 600 | 800 | 1000 | 1300 | 2.8 | 933 | 933 | 3.2 | 714 | 714 | 714 | 4.0 | 457 | 457 | 457 | 457 | 4.5 | 361 | 361 | 361 | 361 | 5.0 | 293 | 293 | 293 | 293 | 6.0 | 203 | 203 | 203 | 203 | - - - - Products:
