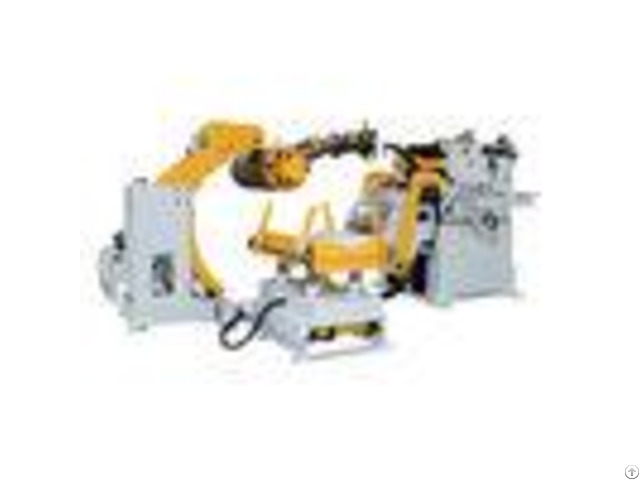

Ruihui Mac4 800f Steel Stock Decoiler Straightener Feeder 3 In 1 Machine - China

RUIHUI MAC4-800F Steel Stock Decoiler Straightener Feeder 3 in 1 Machine Main accessories

1) Electric eye loop control system, controlling the decoiler to release strips automatically.

When strips touch the light sent out by the device, the decoiler will stop to work, on the contrary, when the strips left the light, machine will start to work again.

2) Feeding and straigtening rollers adopted Gr15, and all rollers finished heat treated, hard chrome plated, ground etc, hardness comes 60-62

3) Outgoing Catenary to assist and support the material, guiding strips to the moulds automatically.

4) Press arm device, holding strips firmly when released by the decoiler, preventing coil too loose.

5) Feeding line easily adjusts by advance worm gearscrew jacks device, the straightener feeding part can be adjusted by the lifter which was driven by motor

6) Uncoiler inverter device.

With inverter, the decoiler's rolling speed is adjustable, further more, under protect of the inverter, the decoiler has much longer life time.

7) FLIP-TOP STOCK STRAIGHTENER DEVICE.

The straightener part is open type, easy to clean impurity or crumb sticked on the rollers, keeping the rollers are clean, preventing pressure mark on strip surface after finishing straightening.

ESPECIALLY SUITABLE FOR ALUMINUM, COPPER etc soft material.

The straightener part was driven by two hydraulic cylinders, open angle comes 30.

(Please refer to the following image)8) Machine equipped with four worm gear micro adjust device with daily percentage chart, easy to opearte, having high adjustment accuracy.

9) Machine equipped with threading table device and coil tip flatness device.

the tip of the coil maybe exist curved upward, after strips were guided to the entrance of the straightener feeder part, with the coil tip flatness device, it can press the tip and making the strips entering the feeding rollers easily.

10) The uncoiler contain the butterfly brakes aire compressor.

11) Machine equipped with Siemens servo motor, full sets of Schneider low voltage components, controlled by Siemens PLC etc.

Specifications: - - - -

Model | MAC4-600F | MAC4-800F | MAC4-1000F | MAC4-1300F | Stock Width(mm) | 70~600 | 70~800 | 70~1000 | 70~1300 | Stock Thickness(mm) | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | Max.

Coil Weight(kg) | 5000 | 5000 | 7000 | 10000 | Max.

Coil O.D.(mm) | 1400 | 1400 | 1400 | 1400 | Coil I.D.(mm) | 508 | 508 | 508 | 508 | Feed Length(mm) | ~500* | ~500* | ~500* | ~500* | Max.

Line Speed(m/min) | 16~24 | 16~24 | 16~24 | 16~24 | Work Roll Number(piece) | upper 6/lower 5 | upper 6/lower 5 | upper 6/lower 5 | upper 6/lower 5 | Feed Roll number(set) | 1 | 1 | 1 | 1 | Main Motor | AC7.5 | AC11.0 | AC11.0 | AC11.0 | Mandrel Expansion | Hydrauilc | Hydrauilc | Hydrauilc | Hydrauilc | Reel Motor(kw) | 2.2 | 2.2 | 3.7 | 7.5 | Power(v) | 3 Phase 220V/380V/50HZ | Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 | - - - - Straightening Performance: - - - -

Model | MAC4-600F | MAC4-800F | MAC4-1000F | MAC4-1300F | Stock Thickness

(mm) | 0.8~2.3 | 600 | 800 | 1000 | 1300 | 2.8 | 933 | 933 | 3.2 | 714 | 714 | 714 | 4.0 | 457 | 457 | 457 | 457 | 4.5 | 361 | 361 | 361 | 361 | 5.0 | 293 | 293 | 293 | 293 | 6.0 | 203 | 203 | 203 | 203 | - - - - Products:
