Ruihui Steel Strip Heavy Duty Decoiler And Straightener Feeder For Press Machine - China
price: contact company for price

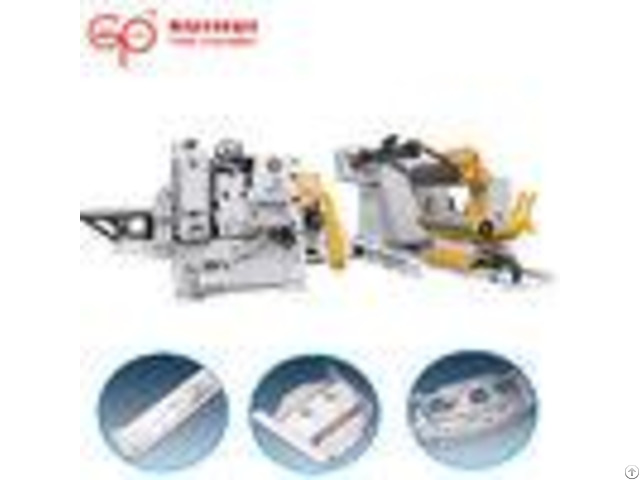

Steel Strip Heavy Duty Decoiler Straightener Feeder For Press Machine For Automotive Parts Product Application 1 - This big machine includes uncoiler function, straightener function, NC servo roll feeder function together, so as 3 in 1 feeder.
2 - It can decoil suitable metal sheet coil, then straighten the metal sheet, then feed the metal sheet to press machine automatically, for automatic stamping processing.
Main Features 1 - Flexible operation: All the functions of the feeder are centered on the PLC and a hand-held knob.
The operator can implement all the motion functions of the equipment at one location.
This can save time.
2 - High efficiency, strong security: To maximize the use of mechanical action instead of manual operation.
Reduce unnecessary auxiliary time, improve work efficiency.
Powerful auxiliary function, so that the operator can stay away from the uncoiler.
3 - Easy to operate: According to user needs, you can switch between the press or the device to control.
Improve the equipment to adapt to the scope for the customer to save costs.
4 - Area is reasonable: RUIHUI NC series is the powerful also have the most reasonable size in the industry, we can save space occupancy costs for the customers.
5 - Control system compatibility: RUIHUI NC series using a full set of Japan's Mitsubishi control system, and the standard system at home and abroad compatible, users do not need to worry about data conversion and other issues can be directly used to operate.
6 - The design is harmonious and reasonable: RUIHUI NC seriesseries is the first on the industry to introduce industrial design into product.
Li Hao and the most well-known industrial design cooperation, while ensuring the basic performance of equipment at the same time, maximize the visibility of the equipment to improve the operational comfort.
Specifications: - - - - Model | MAC4-600F | MAC4-800F | MAC4-1000F | MAC4-1300F | Stock Width(mm) | 70~600 | 70~800 | 70~1000 | 70~1300 | Stock Thickness(mm) | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | Max.
Coil Weight(kg) | 5000 | 5000 | 7000 | 10000 | Max.
Coil O.D.(mm) | 1400 | 1400 | 1400 | 1400 | Coil I.D.(mm) | 508 | 508 | 508 | 508 | Feed Length(mm) | ~500* | ~500* | ~500* | ~500* | Max.
Line Speed(m/min) | 16~24 | 16~24 | 16~24 | 16~24 | Work Roll Number(piece) | upper 6/lower 5 | upper 6/lower 5 | upper 6/lower 5 | upper 6/lower 5 | Feed Roll number(set) | 1 | 1 | 1 | 1 | Main Motor | AC7.5 | AC11.0 | AC11.0 | AC11.0 | Mandrel Expansion | Hydrauilc | Hydrauilc | Hydrauilc | Hydrauilc | Reel Motor(kw) | 2.2 | 2.2 | 3.7 | 7.5 | Power(v) | 3 Phase 220V/380V/50HZ | Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 | - - - - Straightening Performance: - - - - Model | MAC4-600F | MAC4-800F | MAC4-1000F | MAC4-1300F | Stock Thickness (mm) | 0.8~2.3 | 600 | 800 | 1000 | 1300 | 2.8 | 933 | 933 | 3.2 | 714 | 714 | 714 | 4.0 | 457 | 457 | 457 | 457 | 4.5 | 361 | 361 | 361 | 361 | 5.0 | 293 | 293 | 293 | 293 | 6.0 | 203 | 203 | 203 | 203 | - - - - Products:
Company Contact:
- Phone: 86-769-89296726
- Address: ChuangXing Road,BaiSha 5 Village,JinShan Industrial Dist, HuMen, DongGuan, GuangDong, China, DongGuan , GuangDong , China
- Email:
Published date: April 8, 2018
- Business Description: In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and ruihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industry, and investment less.
