2x Digital Amplification Long Range Thermal Camera Full Hd Waterproof - China

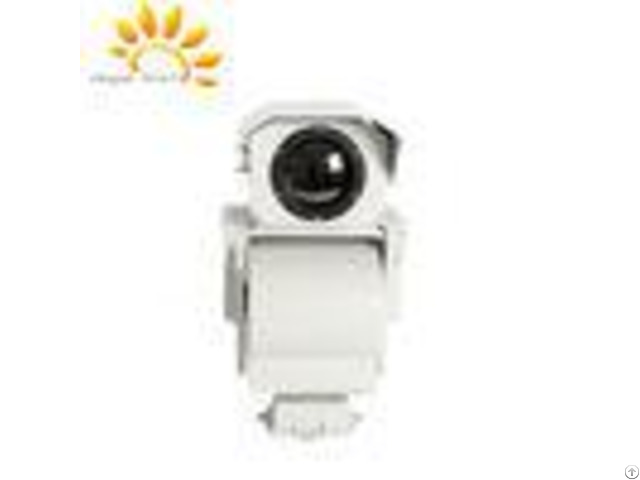

2Km Night Vision Infrared Thermal Camera for Long Range monitoring TC41 series middle distance thermal camerais designed based on the latest 5th generation uncooled infrared technology and infrared optical technology.

With 17um 336x256 resolution uncooled FPA sensor, advanced digital circuit and image processing technology, the camera could supply a much good image.

And the infrared lens using AS optical technology have a detection distance 300m~3km while its size and weight is decreased a lot.

Aluminum alloy housing sealed with nitrogen and weatherproof IP66 make sure the camera works steadily outdoor.

Description: # # designed based on the latest 5th generation uncooled infrared technology and infrared optical technology.

# With 17um 336x256 resolution uncooled FPA sensor, advanced digital circuit and image processing technology, the camera could supply a much good image.

# And the infrared lens using AS optical technology have a detection distance 300m~3km while its size and weight is decreased a lot.

# Aluminum alloy housing sealed with nitrogen and weatherproof IP66 make sure the camera works steadily outdoor.

Technical specification - - - - Model | TC4102- S | TC4105- S | Detection | Vehicle: 1700m | Vehicle: 4200m | | Human: 720m | Human: 1640m | Identification | Vehicle: 420m | Vehicle: 1200m | | Human: 180m | Human: 470m | Sensor | 5th generation UFPA sensor | Resolution | 336256 pixel, 9HZ | Spectral range | 7.514m | NETD | 50mK | Focal length | 20mmF1.0 | 50mmF1.0 | Field of view(horizontal) | 15.5X 11.6 | 6.5X 4.8 | Image processing | 1 - Stable operation temperature without TEC, starting time less than 4 seconds | 2, SDE digital image processing | 3, 10 pseudo color and B/W, B/W conversion | 4, AGC | 5, 2X digital amplification | PTZ(Option) | 1 - Duty: 10kg | 2 - Rotation: pan: 0355, tilt: -60+10 | 3 - Rotation speed: Pan: 7/S, tilt: 3.4/S | 4 - 32 presets | (optional variable speed PTZ) | Interface | 1 - RS-485(PELCO D protocol, Baud rate 2400bps), RS-232(optional) | 2 - Remote OSD setting | 3 - PAL/NTSC video output | 4 - AC24V/DC12V | 5 - Waterproof aviation connector | Environment parameters | 1 - One integral aluminum alloy housing | 2 - Operational temperature: -3555(-45 optional ) | 3 - Power consumption: common 8W, peak 36W(PTZ excluded) | - - - - * The detection distance is related to the object and environment etc.

Please contact with us for further information Application City safety, oilfield safety, railway security, night gathering evidence.
