Anti Pollution Epoxy Resin Medium Voltage Insulators Convenient Installation - China

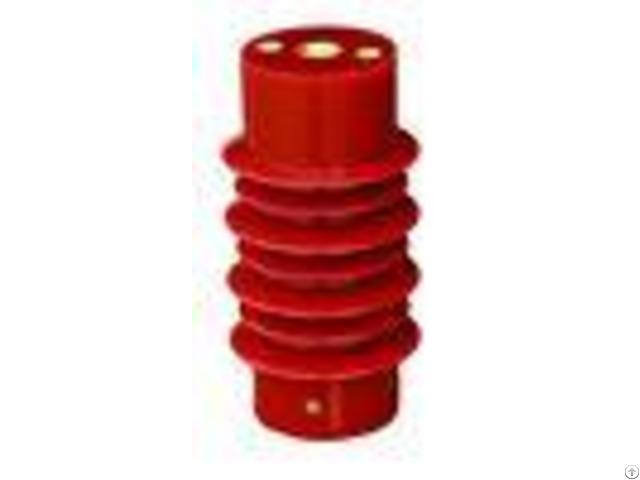

ZN8-12Q/90X170mm Epoxy Resin Casting Resin Support Insulator We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker, Load breaker switch, Disconnecting Switch, Epoxy resin switchgear bushing, contactor box, insulators and transformer .

630A, 1250 A, 2500A, 3150A and 4000A contact box, club contact, fix contact, arm contact and jaw contact .

630A and 1250A VS1 circuit breaker .

630A and 1250A ZN85-40.5 circuit breaker .

12KV and 24KV earth switch.

KYN28A-12 and KYN61 high voltage switchgear components .

Support insulators comply with the technical conditions of GB8287.1 and GB12744, as well as with the requirements of the international standard IEC 168, "Testing of inner and outdoor ceramic or glass support insulators with nominal voltage above 1000 volts" and IEC publication IEC 815, "Guidelines for the use of insulators in filthy conditions".

- - - - Item | Name | Rated voltage (KV) | Rated frequency(Hz) | Frequency withstand voltage 5 min (KV) | Local discharge (pc) | Creep distance (mm) | Dispute bend (kN) | Lighting impulse withstand voltage (KV) | 1 | Insulators(140*320) | 40.5 | 50 | 98 | 10 | 810 | 10 | 185 | 2 | Reactance Insulators(140*320) | 40.5 | 50 | 98 | 10 | 810 | 10 | 185 | 3 | Contactor box (1250A) | 12 | 50 | 45 | 10 | 240 | 8 | 80 | 4 | Contactor box (1600A) | 12 | 50 | 45 | 10 | 240 | 8 | 80 | 5 | Wall bushing (260*395) | 40.5 | 50 | 98 | 10 | 840 | 10 | 185 | - - - - Service: 1 - OEM are welcome 2 - High quality & timely delivery 3 - Reasonable price 4 - In a variety of designs and Specification

Company Contact:

• Posted By: WENZHOU QIUPU ELECTRIC POWER CO., LTD.

• Phone: 86-577-61668158

• Address: Room 102 , Building 7 , No. 1. Xinhe Road YueCheng Street , Yueqing City , Zhejiang P.R., China-3256, Yueqing , Zhejian , China

• Email:

• Website: https://www.epoxyresininsulator.com

• Business Description: Our products are widely used in financial, communications, municipal, transportation, power, construction, aerospace, industrial control and other important areas, has won the majority of users praise and signed a long-term cooperation agreement.
