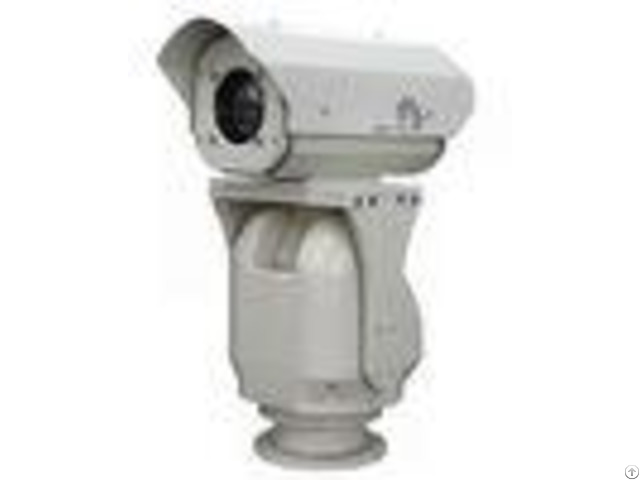

High Zoom Long Distance Infrared Thermal Camera Border Monitoring Cameras - China

Continuous Zoom Infrared Long Range Thermal Camera for Border monitoring Feature: # # based on the latest uncooled IR technology and continuously IR optical zoom.

# User could get a best imaging details with 336*256/640*512 resolution, # advanced digital circuit and image processing algorithm.

# Special design of 10X optical zooming lens have detection distance 18km, suit for both seeking and watching.

# One integral aluminum alloy housing make sure the camera IP66 sealing rates and works well in harsh outdoor conditions.

Technical specification - - - - Model | TC41021- S | TC4328- S | Detection | Vehicle: 17400m | Vehicle: 18000m | | Human: 6800m | Human: 8000m | Recognition | Vehicle: 4800m | Vehicle: 6000m | | Human: 1800m | Human: 2600m | Sensor | 1, Detector: 5th generation UFPA Vox Detector ; 2, Resolution: 336256, (640X512 optional) 3, NETD: 50mK(@25 F1.0) 4, Spectral range: 7.514m | NETD | 50mK(@25 F1.0) | Focal length | 1, Length: 21210mm 2, FOV: 16121.61.2 3, Motorized zoom, focus(auto focus optional ) 4, AS+DOE advanced optical design, high infrared transmission; 5, Applied 3CAM high precision design; | 1, Length: 95/285mm 2, FOV: 3.42.4/1.10.8 3, Motorized zoom, auto focus ; 4, AS+DOE advanced optical design, high infrared transmission; 5, Applied 3CAM high precision design; Dual focal fast switch ; | IFOV | 0.080.85mrad | 0.060.18mrad | Image processing | 1 - stable operational temperature, starting time less than 4 seconds | 2 - SDE digital image processing | 3 - 10 pseudo color and B/W, B/W inverse | 4 - AGC | 5 - 2X digital amplification | Housing | 1, Material: aluminum alloy housing, waterproof; 2, Structure: Integral single window design ; 3, Surface: PTA coating, anti sea water corrosion; 4, Sealing rate: IP66 5, Built-in temperature controller, thermal balance design; 6, Interface: aviation waterproof connector ; | PTZ(optional) | 1, Load: 50kg military level digital PT ; 2, Angle: pan 0360, tilt -45+45 3, Speed: 0.0130/S high precision variable speed control and locking ; 4, Preset: 80 presets, support lens zoom and focus memory, variable speed scanning 030/S, support apple peel scanning function; 5, Protocol: Pelco-P, Pelco-D 6, Baud rate: 2400, 4800, 9600, 19200 optional ; | Consumption, weight | 1, Consumption(PT included): min.

40W, max.

120W 2, weight(PT included): 40kg | Interface | 1 - RS-485(PELCO D protocol, baud rate 2400bps), RS-232(option) | 2 - Remote OSD setting | 3 - PAL/NTSC video output | 4 - AC24V( DC12V option) | 5 - Waterproof connector | Environment indicator | 1, Working temperature: -25+55(-40 optional) 2, Storage temperature: -35+75 3, Humidity: <90% 4, Anti-shock: 0.2g(GB/T15211 20135.4 harshest level 2 standard) 5, Anti-resistance: 15g(GB/T1 521120135.3 harshest level 3 standard) 6, Anti-lightening: power 4000V, signal 2000V 7, Anti salty: PH6.57.2, continuous sprarying 48 hours ; 8, Protection rate: IP66 | - - - - * The detection distance is related to the object and environmentetc.

Please contact with us for further information.
