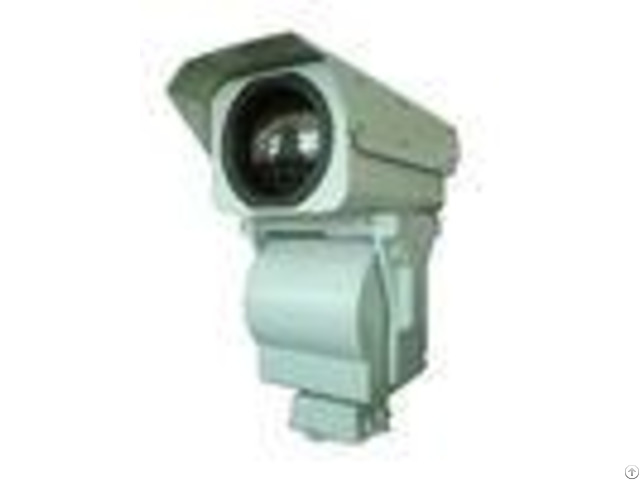

Ip66 Uncooled Ir Ptz Thermal Imaging Camera With Motorized Zoom Rs 485 - China

6KM Long Range monitoring IR PTZ Thermal Imaging Camera Continuous Zoom Feature: # # based on the latest uncooled IR sensitive technology and continuously IR optical zoom.

# User could get a best imaging details with 640*512 resolution uncooled FPA sensor, advanced digital circuit and image processing algorithm.

# Special design of 5X optical zooming lens have detection distance 16km, suit for both seeking and watching.

# One integral aluminum alloy housing make sure the camera works well outdoor.

Technical specification - - - - Model | TC4307-S | TC4510-S | TC4412-S | TC4515-S | TC4519-S | Detection | Vehicle: 6500m | Vehicle: 8600m | Vehicle: 10000m | Vehicle: 13000m | Vehicle: 16400m | | Human: 2500m | Human: 3400m | Human: 4000m | Human: 4800m | Human: 5800m | Identification | Vehicle: 1800m | Vehicle: 2400m | Vehicle: 2800m | Vehicle: 3400m | Vehicle: 4200m | | Human: 700m | Human: 900m | Human: 10000m | Human: 1300m | Human: 1600m | Sensor | 5th generation UFPA sensor | Resolution | 336*256 pixel (640*512 optional) | Spectral | 7.514m | NETD | 50mK(@25 F1.0) | Focal length | 2575mm | 21105mm | 30120mm | 31155mm | 38190mm | FOV(H) | 134.3 | 183.4 | 112.8 | 11.22.2 | 9.51.9 | IFOV | 0.220.68mrad | 0.170.85mrad | 0.140.57mrad | 0.110.55mrad | 0.090.45mrad | Lens control | Motorized zoom and focus(optional auto focus) | Image processing | 1 - Stable operational temperature without TEC, starting time less than 4 seconds | 2 - SDE digital image processing | 3 - 10 pseudo color and B/W, B/W inverse | 4 - AGC | 5 - 2X digital amplification | Housing | 1 - Material: High strength aluminum alloy shell, waterproof seal, To avoid the growth of mold and moisture generated | 2 - Structure: Integrated single-window design | 3 - Surface coating: PTA three-resistance coating, Seawater corrosion resistance | 4 - Interface: Aviation waterproof plug | PT(optional) | 1 - Duty: 20kg | 2 - Rotation: Pan: 0355, Tilt: -60+10 | 3 - Rotation speed: Pan: 9/S, Tilt: 4/S, | 4 - Preset 32(Optional variable speed PT) | Interface | # RS-485(PELCO D protocol, baud rate 2400bps | # Remote OSD setting | 3 - PAL/NTSC video output | 4 - AC24V ( DC12V optional) | 5 - Waterproof connector | Environment | # Operating temperature: -25+55(-40 optional) | # Storage temperature: -35+75 | # Humidity: <90% | # Ingress protection: IP66 | - - - - * The detection distance is related to the object and environment etc.

Please contact with us for further information.
