Ir Eo Monitoring Thermal Imaging Camera Ultra Long Range Ptz Infrared - China

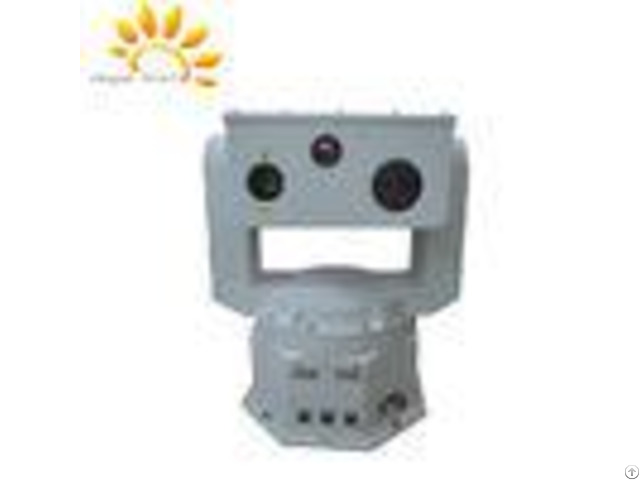

Ultra Long Range PTZ Infrared IR/EO monitoring Thermal Imaging Camera ZTRC Series Multi-spectrum Optical Electronical Platform combines visible camera, NIR laser camera and thermal camera that suit long distance monitoring in total darkness and foggy/rainy environment.

It has a U shape & Dome Shape housing and with military quality, the camera is widely applied to coastal, seaport, airport, Forest fire prevention.

In the day time, HD lens and 440000 pixel/2 mega pixel color to B/W CMOS works.

At night, the 320*240/640*480 uncooled thermal camera and 1~5km NIR illuminator works.

The multi- spectrum photoelectronic platform can detect 15km 24/7 hours.

Internal industrial-grade embedded electronic control system support the ZTRC operation: zoom, focus, video switch, pan tilt.

The integral aluminum alloy housing IP66 makes sure outdoor long running.

Feature Aluminum alloy housing, anti-corrosion paint, anti-seawater corrosion, spherical housing, resisting 33m/s wind.

Precision positioning.

Data feedback: real-time feedback direction, angle, focal length and focusing data, track and locate the target.

(cooperate with application software).

High load duty.

It could bear 60X visible camera, large caliber thermal camera and high-power laser illuminator, detection range 15 km or more.

Max rotation speed 45/s, min rotation speed 0.01/s.

Pan rotation angle range 0-360, tilt rotation angle range 45 - ZTRC combines thermal camera, visible camera, NIR laser illuminator, pan tilt, housing and decoder.

One integral aluminum alloy housing, waterproof, IP66, anti-dust.

Application Border defense, lake and river monitoring, airport security, city safety, forest fire prevention.

Technical specification - - - - Model | ZTRC | Shape | U shape & Dome Shape housing, Multi-dimensional free-form surface shape resisting 33m/s wind.

| Load duty | 50 kg | Rotation speed | Pan: 0.0145/S; Tilt: 0.0145/S(optional 200/S ) | PT | Pan: 0360 ; Tilt: -45+45(optional +90 ) | Preset | 200 | PT position back sending | 0.01accuracy, real-time back up | Smart features | 1 - Automatic Patrol : 8 path, 10 patrol positions/path 2 - Automatic homing can be set from 1 to 60 minutes 3 - Auto Scan: 1 | Interface | 1.1 channel 10M / 100M adaptive Ethernet port (containing visible thermal image + HD + RS485 control), 1 AC24V / DC24V, 2 - (Optional) Reserved RS422 / 485 and analog video, azimuth return for radar, GIS linkage position, or third-party intelligent analysis 3 - Military-grade waterproof aviation plug | Protocol | 1 - TCP / IP, HTTP, DHCP, DNS, DDNS, RTP and other network protocols 2 - Support ONVIF2.0 3 - Pelco-P, Pelco-D and other industry-standard protocol, baud rate 2400, 4800, 9600, 19200 alternative, proprietary protocols can be customized | Enhancements | Lens defrost, air-cooled shields, heating function to achieve automatic control and heated open at -35 degrees | Power supply | AC220V20% Turntable rotation power can be controlled in 120W, maximum power consumption 150W, stationary machine power 45W, heating 150W | Environmental indicators | 1 - Working temperature: -40 ~ + 55 2 - Storage temperature: -40 ~ + 65 3 - Humidity: <90% 4 - Protection: IP66 | Weight | 115KG( 65kg for vehicle mounted) | Dimension | 554mmH705mm | Thermal camera | Optional 320X240/640X512 sensor, 2575mm, 21105mm, 31155mm, 38190mm, 21210mm, 95/285mm lens | Visible camera | Optional 12320mm, 15500mm, 30750mm, 16.7-1000mm, 2 mega pixel CMOS | Laser illuminator | Optional 1000m/2000m/3000m/5000m laser illuminator | Tracking | optional tracking module, manual, automatic, radar linkage tracking, automatic tracking over the top.

| LRF | Optional 5km, 8km, 15km Pulsed laser ranger, 1.57um eye-safe laser range, accuracy 3 m, repetition rate 10 beats / min | GPS | Positioning accuracy 10 meters, optional Compass positioning, accuracy 0.001s, detection -148dBm, tracking -165dBm | Electronic compass | range 0-360, precision 1, Resolution 0.1 | - - - - * The detection distance is related to the object and environment etc.

Please contact with us for further information.
