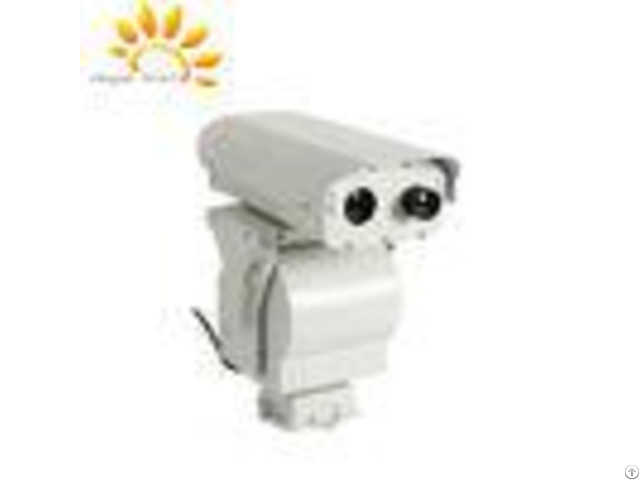

Ir Temperature Detect Long Range Night Vision Camera Stable Thermal Imaging - China

IR Temperature Detect Thermal Imaging Long Range Night Vision Camera Feature: # More exactly temperature measurement, digital thermometer, thermal image is based on the original data processing, separation between front-end temperature measurement techniques and thermal video.

# Thermal and 2 megapixel HD dual channel camera, output thermal image and visible image meanwhile, observe specific details.

# UFPA detector, small size, longer using life, lower power consumption, work more stable than normal uncooled detector.

# The latest generation of MEMS technology, NETD: 50mk, get more delicate picture.

# SDE, no image noise, 10 pseudo colors.

# 10 target sub regions, independently detection and alarm thresholds, return the max temperature, min temperature and location from front end # Special temperature alarm technology, eliminates false report due to the temperature difference outdoor and weather changes.

# KTVC automatic multi-points scanning detection, multiple detection areas per preset, 360 degree full time monitoring.

# Military style design, one integral aluminum alloy housing and sealed with nitrogen, IP66 weatherproof, enable the camera works well in severe weather conditions.

# 10 - IP network design, video, alarm data, location data transmission via one network cable.

Application Power detection, substation, petrochemical, online test of industrial equipment operating, medical thermometer, health and epidemic prevention, building inspection, circuit research and design thermal analysis.

Technical specification KTVC series dual channel temperature detection security camera - - - - Model | KTVC4101-1920 | KTVC4102-1920 | KTVC4105-1920 | FOV | 43.6*32.7 | 27*20.2 | 11*8.2 | Thermal sensor | 5th generation UFPA | Resolution | 384*288 pixel(640*512 optional) | Spectral response | 7.514m | NETD | 50mK(@25 F1.0) | Thermal lens | 10mm F1.0 | 20mm F1.0 | 50mm F1.0 | Visible CCD | 1/2.8'' CMOS, 2 mega pixels, ICR optical filter, auto color to B/W.

| Visible lens | 4.794mm lens, motorized zoom and focus.

| Image processing | 1 - Stable operation temperature without TEC, starting time less than 4 seconds | 2 - SDE digital image processing | 3 - 10 pseudo color and B/W, B/W conversion | 4 - 2X digital amplification | Temperature accuracy | 1 - Temperature accuracy: 2 or 2% of reading, take the maximum | 2 - Temperature range: -20120(650 optional) | 3 - Adjustable parameters, include temperature correction, emissivity, atomospheric transimissivity, humidity | Temperature model | 1 - Support high, low and average temperature tracking, point, line and rectangular detection; multi addable detection targets | 2 - Each road can be set up to 10 alarm region, independent threshold value and sampling cycle setting, independent curve chart | 3 - Fixed point monitoring, multi areas addable.

| Overheat alarm | 1 - 6 kinds of alarm algorithm, maximum, minimum, average, middle position absolute threshold and airspace relative, time domain, relative value alarm temperature mutations | 2 - Sound, light alarm.

Presets a linkage visible light camera ptz automatic observation target.

Reserved switch alarm output, manual/automatic fire extinguishing system and the broadcasting system | Alarm log | 1 - Real-time record each object temperature data, automatically generate trend curve.

| | 2 - Can automatic storage temperature when trigger the alarm data, snapshot images and videos, establish and record the related logs, video storage, real-time playback | PT | 1 - Duty: 15kg | 2 - Rotation: pan: 0360, tilt: -75+40 | 3 - Rotation speed: Pan: 0.160/S, tilt: 0.130/S | 4 - 256 presets | 5 - Anti-shake | Interface | 1 - One RJ45 network interface (including video and temperature data, azimuth of return data, PT control transmission), one switch alarm output (linkage acousto-optic alarm, start, fire control system) | 2 - AC24V/DC24V | 3 - Waterproof aviation connector | Environment parameters | 1 - Protection: One integral aluminum alloy housing, IP66 | 2 - Operational temp: -2555(-45optional) | 3 - Power consumption: common 50W, peak 100W | - - - - * The detection distance is related to the object and environment etc.

Please contact with us for further information.
