Long Distance Ptz Thermal Imaging Camera With 640 512 High Resolution - China

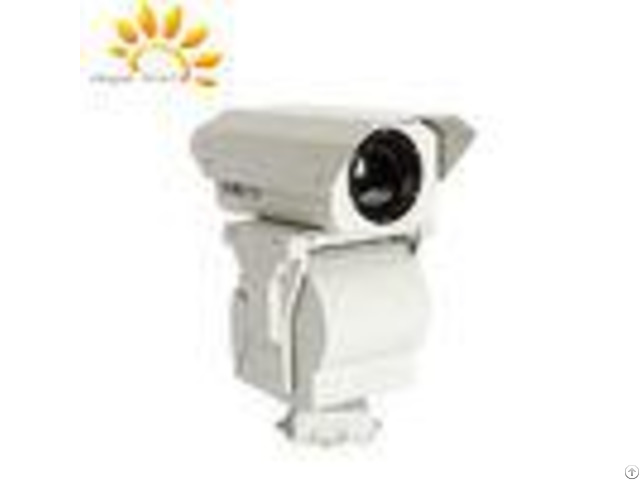

TC4511 Long Range PTZ Zoom IR Thermal Camera with IP66 waterproof Description: TC45 series long range thermal imaging camerais based on the latest uncooled IR sensitive technology and continuously IR optical zoom.

User could get a best imaging details with 336*256/640*512 resolution uncooled FPA sensor, advanced digital circuit and image processing algorithm.

Special design of 5X optical zooming lens have detection distance 16km, suit for both seeking and watching.

One integral aluminum alloy housing make sure the camera works well outdoor.

Feature # NETD 50mk enhance the imaging details even in foggy/rainy/snowy weather.

# Special AS optical zooming lens and 3CAM high-precision optomechanical design suit for both large-scale seeking and long-distance watching.

# Non-uniform image correction technology, stable working temperature without TEC, good image uniformity and dynamic range.

SDE digital image processing, no image noise, 10 pseudo color image and B/W, B/W inverse.

# One integral aluminum alloy housing, weatherproof IP 66, waterproof, anti-dust.

Application Oilfield safety, railway&freeway security, river&airport security, forest fire prevention, city safety.

Technical specification - - - - Model | TC4307A | TC4511A | TC4412A | TC4516A | TC4519A | Detection | Vehicle: 6500m | Vehicle: 8600m | Vehicle: 10000m | Vehicle: 13000m | Vehicle: 16400m | Human: 2500m | Human: 3400m | Human: 4000m | Human: 4800m | Human: 5800m | Identification | Vehicle: 1800m | Vehicle: 2400m | Vehicle: 2800m | Vehicle: 3400m | Vehicle: 4200m | Human: 700m | Human: 900m | Human: 1000m | Human: 1300m | Human: 1600m | Sensor | 5th generation UFPA sensor | Resolution | 336*256 pixel (640*512 optional) | Spectral | 7.5 14m | NETD | 50mK (@25 F1.0) | Focal length | 25 75mm | 21 105mm | 30 120mm | 31 155mm | 38 190mm | FOV(H) | 13 4.3 | 18 3.4 | 11 2.8 | 11.2 2.2 | 9.5 1.9 | Lens control | Motorized zoom and focus(optional auto focus) | Lens design | AS+DOE Advanced optical design, High infrared transmittance | Zoom without virtual focus | Image processing | Stable operational temperature without TEC, starting time less than 4 seconds | SDE digital image processing | 10 pseudo color and B/W, B/W inverse | AGC | 2X digital amplification | Housing | Material : High strength aluminum alloy shell, waterproof seal, To avoid the growth of mold and moisture generated | Interface : Aviation waterproof plug | PT ( optional ) | Duty: 20kg | Rotation: Pan: 0 355, Tilt: -60 +10 | Rotation speed: Pan: 9/S, Tilt: 4/S, | Preset 32 ( Optional variable speed PT ) | Interface | RS-485 ( PELCO D protocol, baud rate 2400bps | Remote OSD setting | PAL/NTSC video output | AC24V ( DC12V optional) | Waterproof connector | Environment | Operating temperature : -25 +55 ( -40 optional ) | Storage temperature : -35 +75 | Humidity : <90% | Anti-lighting : built-in auto Fuse-protected device, Power 4000V, Signal 2000V | Ingress protection : IP66 | - - - -
