Ptz Monitoring Long Range Vehicle Mounted Dual Thermal Imaging Camera - China

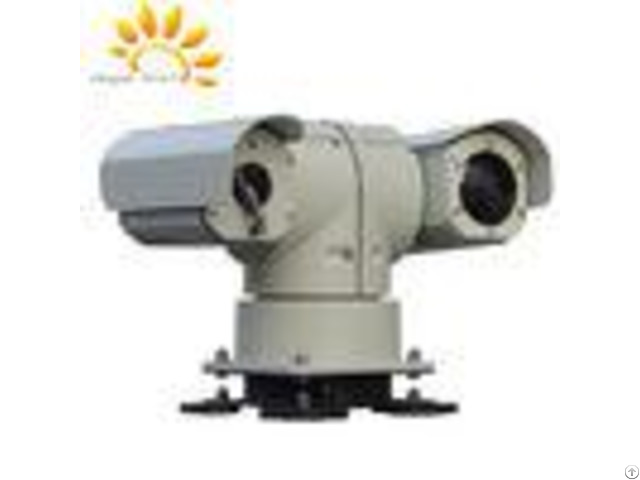

PTZ monitoring Long Range Vehicle Mounted Dual Thermal Imaging Camera GTVC Series Vehicle Mounted Optical System Thermal Camera day/night thermal camera.

It consists of thermal imaging cameras, HD visible light cameras, laser ranging, dynamic organization, precision gears, digital decoder, high-performance image processing unit and controller.

All-reinforced structural design, super-strength stainless steel center bearing, multi-round reinforcement design, to ensure the equipment run properly under the condition of the vehicle bump.

Simple mechanical design and compact structure, exquisite; high positioning accuracy and reliability; operating flexibility, speed, start and stop smoothly, easy to control.

Max detection distance 10km.

Internal industrial embedded control electronics system, control zoom, focus, video switching, pan tilt rotate.

Whole shell is made of super alloy, the internal material uses high strength stainless steel bearings, to meet anti-shock requirements for military wheeled car, reach IP66 grade, to ensure that equipment long-term operation in harsh outdoor environment.

Feature # Consist of infrared thermal imaging, visible light camera, anti-shock reinforcement pan tilt, accurate position.

# NETD 50mk, higher than other cameras, obtain more delicate picture quality, little effect by rain and snow fog.

# 20kg, 50kg anti-shock reinforcement heavy duty CNC pan tilt, 360 continuous rotation observation, no dead ends, smooth operation, image small dithering.

# Full-reinforced structural design, super-strength stainless steel center bearing, multi-round reinforcement designed to meet military vehicle environmental vibration, anti-shock requirements # Housing using superior aluminum material, IP66 protection, anti-rain, anti-dust, can adapt to a variety of harsh environments Application Military vehicle video command system, border and coastal patrol car video monitoring, police vehicle patrol video monitoring systems.

Technical specification - - - - Model | GTVC4307-1930-IP | GTVC4510-2030-IP | GTVC4515-2050-IP | Detection | Vehicle: 6500m | Vehicle: 8600m | Vehicle: 13000m | | Human: 2500m | Human: 3400m | Human: 4800m | Identification | Vehicle: 1800m | Vehicle: 2400m | Vehicle: 3400m | | Human: 700m | Human: 900m | Human: 1300m | Thermal sensor | VOx uncooled detector, 324*256(640*512 optional); 7.5um-14um spectral response, 50mk NETD, 2X digital zoom; Image processing; AGC; 10 pseudo color; SDE image enhancement; | | | Thermal lens | 25mm75mm | 21mm105mm | 31mm155mm | | 3CAM precision mechanizing(auto focus optional) | FOV | 134.3 | 183.4 | 11.22.2 | Visible camera | 1/1.8'' Sony CMOS, 2.1 mega pixels, 1920*1080, auto B/W to color at 0.001lux; ICR optical filter; H.

264 | Visible Lens | 4.3mm129mm, mega pixels, auto focus | 12320mm, mega pixels, motorized zoom and focus, auto iris | 15528mm, mega pixels, motorized zoom and focus, auto iris(25750mm optional) | GPS (optional) | Positioning accuracy | 10m | Time update cycle | 1ms, 100ms, 200ms | Time Accuracy | 0.001s | Baud rate | 48, 009, 600, 192, 003, 800, 000, 000, 000, 000 | Sensitivity | detect-148dBm, tracking-165dBm | PT and housing | Housing | Integrated multi-window, aluminum, with wiper, waterproof seal, IP66 protection class, dustproof and waterproof | Internal control circuit | pan, tilt, rotate( PWM drive), the lens zoom, focus, camera DC12V power supply, laser ranging finder high and stable power supply DC24V 1V, color to W/B aux command, preset function, the thermostat function.

| Load duty | 30kg | 50kg | Angle | Pan 360 continuous, tilt + 45 ~ -45, PT azimuth display.

| Speed | Pan 0.0115/S; tilt 0.0115/S | Seismic reinforcement | Super-strength stainless steel center bearings, with special damping base | LRF (optional) | Wave length | 1.57um | Detection | 50m10000m | | (max 15000m) | Ranging Accuracy | 3m | Repetition frequency | 10 cycles / minute | Power supply | DC24V | Interface | RS422 full duplex | Others | Interface | 1*RJ45 network HD visible light video, | | 1*PAL thermal imaging video, | | 1* DC24V, 1*RS422 | Ingress protection | IP66 | Operational temp.

| -35+65 | Weight | 20kg65kg(Based on specific configuration ) | - - - -
