PVC & PE Single Screw Extruder

Extrusion speed: 1-6m/min Voltage: 380V, 220V, 380V, 440V Temperature control: electric

Extrusion speed: 1-6m/min

Voltage: 380V, 220V, 380V, 440V

Temperature control: electric

PVC electrical channel extrusion description

1 - PVC cable trunk extrusion line is applied to produce U channel profile which used as PVC electrical cable trunking/cable duct.

2 - This production is composed of conical twin-screw extruder, vacuum calibration table, haul-off, cutter and stacker.

3 - Chang different extruding mould, this machine can also produce PVC door & window profiles, foamed special shaped materials profiles, decoration plate material, profile and multi-hole wire plastic products, etc.

Extrusion process

PVC powder + additives → Mixer → Screw feeder → Extruder → Mould → Vacuum forming table→ Haul-off machine→ Cutting machine → Stacker

Machine List

PVC electric cable trunking extrusion line include forced feeder, conical twin screw extruder, mould, vacuum calibration & cooling table, haul off machine, stacker, punching machine.

Usually we choose SJSZ55/110 as mian extruder.

Extruder+2 cavities mould: for small size cable trunkings (12*12, 16*16, etc)

Technical parameter

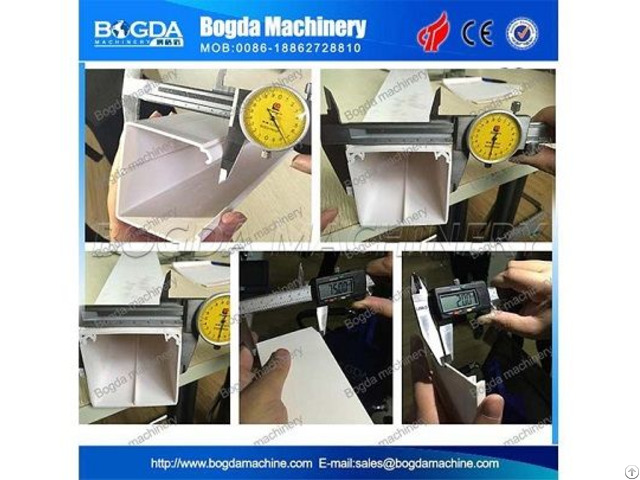

PVC electric cable trunking sizes

15×10 16×16 16×25 20×10 20×20 25×16 25×25 30×12 30×25 30×30 35×40 35×60 35×75 40×16 40×25 40×30 40×40 40×60 40×60 40×80 45×25 45×30 45×45 45×60 45×90 45×90 50×30 50×40 50×50 60×25 60×60 60×60 65×45 75×75

80×40 80×60 80×80 90×40 90×75 90×75 90×90 100×25 100×40 100×60 100×100 120×80 120×80 120×100
