Semi Automatic Pipe Square Machine - China

Pipe Shape Forming

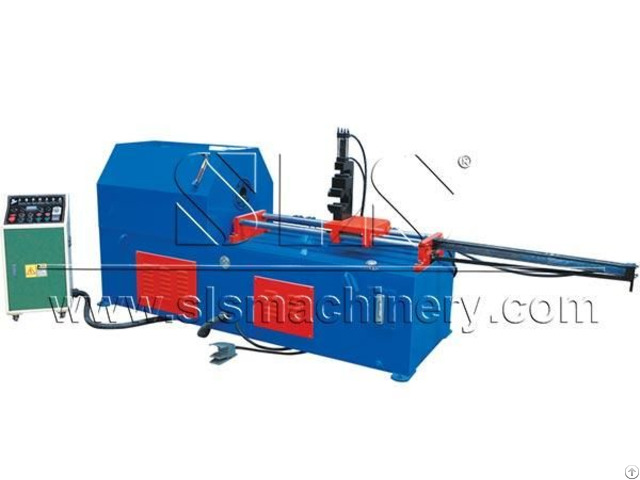

Semi-Automatic Pipe Square Machine

Pipe Square Machine Model: TS-76×76Y

Max.

Squaring Capacity: 76.2 (3”)×76.2 (3”)mm

Max.

Squaring Length: 720mm

Length Accuracy: +/-0.5mm

Squaring Motor Power: 7.5 Kw

Hydraulic Pressure: 30-50Kg/cm2

SLS Semi-Automatic Pipe Square Machine is a special kind of pipe cold forming machine.

In other words, square machine is designed as a cost-efficient alternative to traditional metal forging and machining operations.

As the tube is fed into the machine automatically driven by hydraulic, it will be squared by the dies to form it into the desired shape, which will be set according to the specifications on the control mechanism.

By applying German advanced technology and good mechanism&electrical quality controlling, machine with extremely advantage of low noise.

Semi-automatic square solution for high and medium productions.

STANDARD

Operation panel offers easy operation of machine.

Machine featured as manual pipe loading, automatic pipe feeding into machine, automatic squaring.

All the parts are made under very strict quality control, so the quality of machine is in high level and the specification is standardized.

A high quality square machine will use square forming tools that forming the tube into the desired shape.

The thickness of the pipe and the strength of the material to be squared will also impact how the materials should be prepared to create a high quality square tube.

Available pipe material: steel, stainless, aluminum, titanium and brass.

The design of the tooling help customer easy to change.

Very Low noise during working: 75-85db.

CE&ISO 9001: 2000.
