Semi Automatic Rotary Pipe Pile Machine - China
price: contact company for price

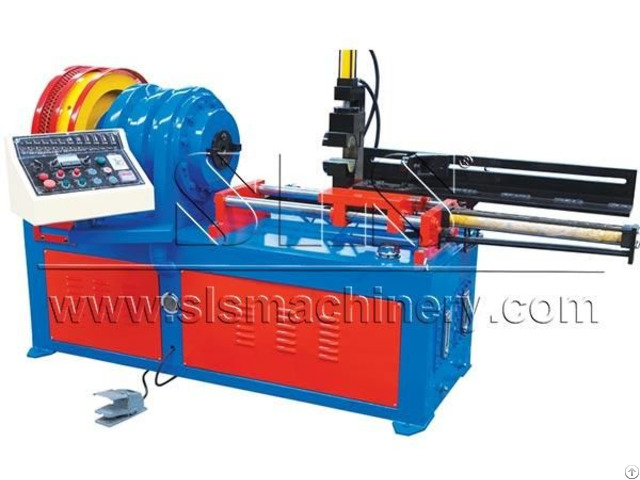

Semi-Automatic Rotary Pipe Pile Machine
Pipe Pile Machine Model: TP-76Y
Max.
Pile Capacity: ¢76.2 (3”)×5mm
Max.
Tapering Length: 400mm
Length Accuracy: +/-0.5mm
Swaging Motor Power: 18.5Kw
Hydraulic Pressure: 30-50Kg/cm2
SLS Semi-Automatic Rotary Pipe Pile(Swaging)Machine also know as pipe tapering machine or pipe cone machine is a special kind of pipe cold forming machine.
In other words, rotary swaging is designed as a cost-efficient alternative to traditional metal forging and machining operations.
The function by using four die rotary hammering mechanisms to taper a tube to its final form.
As the tube is fed into the machine automatically driven by hydraulic, it will be swaged by the dies to taper it into the desired form, which will be set according to the specifications on the control mechanism.
By applying German advanced technology and good mechanism&electrical quality controlling, machine with extremely advantage of low noise.
Semi-automatic rotary swaging solution for medium productions.
STANDARD
Operation panel offers easy operation of machine.
Machine featured as manual pipe loading, automatic pipe feeding into machine, automatic rotary swaging.
All the parts are made under very strict quality control, so the quality of machine is in high level and the specification is standardized.
A high quality tapering machine will use tools that move the dies in and out, offering as many as 3000 blows per minute to hammer the tube into the desired shape.
The thickness of the pipe and the strength of the material to be tapered will also impact how the materials should be prepared to create a clean tapered edge.
Available pipe material: steel, stainless, aluminum, titanium and brass.
The design of the tooling help customer easy to change.
Very Low noise during working: 75-85db.
CE&ISO 9001: 2000.
TOOL
STANDARD MATERIAL: Cr12MoV
ACCESSORIES:
TOOL, TOOL BOX, MANUAL OPERATION, INSTALLATION DVD, SPARE PARTS
