32kw 8 Heating Zones Gs 800 N Lead Free Reflow Oven For 50 400mm Wide Pcb - China

32KW 8 heating zones GS-800-N lead free Nitrogen reflow oven for 50-400mm wide pcb Product features:

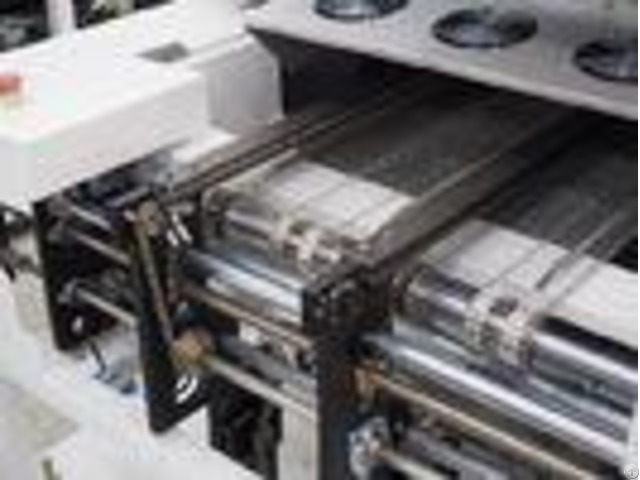

1 - The guide rail adopts the whole two section multi point suspension structure, the guide rail adjust the light and flexible, the horizontal and width direction error and the deformation are small, and the straightness is good.

2 - Optional dual structure, and a four track spacing 686mm, convenient wiring; guide the import and export are equipped with power transition wheel and a safety protective cover for board production; a standard, four fixed rail, two or three rail activities.

3 - Each heating area is equipped with independent heating control circuit breaker, which can realize independent switch of heating power in different temperature zones, which greatly protects the equipment safety and is convenient for customers to use and maintain.

4 - The upper and lower heating areas are equipped with independent inverter to facilitate the customers to achieve different production processes.

Specification: - - - -

Model Name | GS-800-N | General | Dimension (L*W*H) | 5245*1420*1520mm | Weight | 2950kg | Heating System | Heating Structure | Up 8 / Bottom 8 | Cooling Structure | Up 2 / Bottom 2 | Rectifier Board Structure | Thick Aluminum Plate | Cooling Method | Water Cooling / Forced Air Cooling | Control System | Power Supply | 3 Phase 380V 50Hz | Total Power | 66KW | Start / Normal Power | 32KW / 8KW | Warming Time | About 30 Minutes | Temp.

Setting Range | Indoor Temp.

-300 | Temp.

Control Precision | 1 | Temp.

Control Method | PID Cloesd-loop Control System + SSR Driver | Temp.

Deviation On PCB | 1.5 | Data Storage | Auto Save Operation And Alarm Data

Manual Save Technical Parameters | Abnormal Alarm | Temp.

&Speed Deviation Alarm

Air Conveying &Power Outage Alarm | Board Dropped Alarm | Standard Configuration Include | Conveyor System | Guide Rail Structure | Integral Two-stage | Chain Structure | 35B Single Button With Dam-board

LengthenedNickel Plated Carbon Steel Chain | Max.

Width Of PCB Support | 400mm (Optional: 610mm) | Width Range of PCB Support | 50-400mm (Optional: 50-610mm) | Conveyer Direction | LR (Optional: RL) | Fixed Rail Side | Front Rail Fixed (Optional: Rear Rail Fixed) | Conveyor Speed Range | 400-2000mm/min | Conveyor Height | 90015mm | Self-lubrication System | Standard Configuration Include | Optional | Reserved Nitrogen System | Cooling-water System, Nitrogen Flowmeter

Filled Pipes, Air furnace is Optional | Total Nitrogen System | Air Oven Without This Function

Nitrogen Oven Include | Standard Nitrogen Consumption | 300-1000ppm, 18-20m/h | Dual Rails Conveyor System | Dual Rails is Optional

Rail1&4 Fixed distance for 686mm, 2&3 is active | CBS | CBS is Optional

Without Mesh Belt Conveying Function | Temp.

Curve Monitor System | PIS, Temp.

Curve Monitor System

Strip Code System is Optional | - - - - Production Details: Q&A: 1) MOQ ?

1 set machine, mixed order is also welcomed.

2) This machine is easy to use ? if I have no experience, I can also operate it well ? Do you provide the user manual and operating videos to support us ?

Yes, our machine is designed to use easily, Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.

We will provide the English user manual for free, and the operation video is available.

3) What is the payment way ? We accept the payment terms: Bank transfer, WesterUnion, , Paypal, etc.

1 - The entrance and exit of the oven is equipped with a nitrogen shielding curtain, which can reduce the spillover of nitrogen, and use a special hardening guide, which is strong and durable.

4) If we come to your factory, you will provide the free training ?

Yes, warmly welcome you to visit our factory, we will arrange the free training for you.

5) What's the whole process to buy the machine from your company ?

1 - Send email or message to us by contact.

2 - Confirm the basic info.

include final price, shipping, payment methods and other terms.

3 - We will send the proforma invoice to you for confirming the order.

4 - Remind the client do the payment according to the method put on proforma invoice.

5 - Arrange the production for the order in terms of the proforma invoice after confirming your full payment.

6 - Machine aging test then check the products in good packaging condition before shipping.

7 - Delievery the machine by air or sea.
