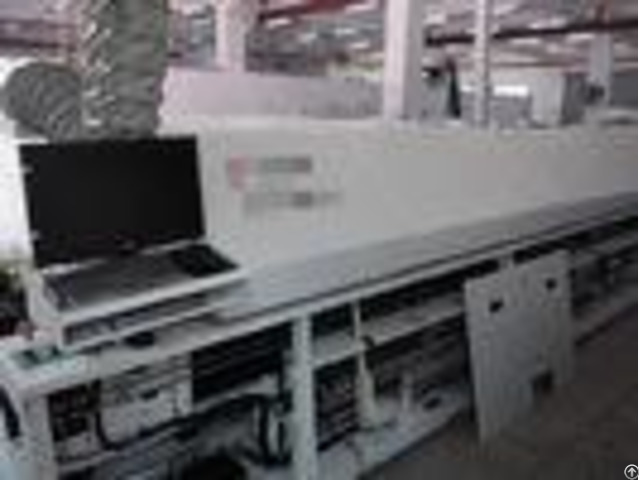

9kw Ds 1200 Reflow Soldering Machine 12 Heating Zones For 50mm Pcb - China

9KW Economical DS-1200 large size lead free reflow oven with 12 heating zones for 50mm pcb Product features: 1 - Optional dual structure, and a four track spacing 686mm, convenient wiring; guide the import and export are equipped with power transition wheel and a safety protective cover for board production; a standard, four fixed rail, two or three rail activities.

2 - Simple control panel, centralized power switch, large cover opening and closing, guide rail in one place, simple and convenient operation.

3 - SIEMENS PLC control, stable and reliable performance, high repetition precision, the rest of the key control parts are imported brand, stable performance, durable.

4 - The upper and lower heating areas are equipped with independent inverter to facilitate the customers to achieve different production processes.

5 - The cooling zone is equipped with natural wind cooling zone, and the inlet of the air inlet is equipped with a regulating plate, and the cooling rate can be adjusted.

Specification: - - - -

Model Name | DS-1200 | General | Dimension (L*W*H) | 7365*1420*1520mm | Weight | 3050kg | Heating System | Heating Structure | Up 12 / Bottom 12 | Cooling Structure | Up 3 / Bottom 0 | Rectifier Board Structure | Thick Aluminum Plate | Cooling Method | Water Cooling / Forced Air Cooling | Control System | Power Supply | 3 Phase 380V 50Hz | Total Power | 92KW | Start / Normal Power | 38KW / 9KW | Warming Time | About 30 Minutes | Temp.

Setting Range | Indoor Temp.

-300 | Temp.

Control Precision | 1 | Temp.

Control Method | PID Cloesd-loop Control System + SSR Driver | Temp.

Deviation On PCB | 1.5 | Data Storage | Auto Save Operation And Alarm Data

Manual Save Technical Parameters | Abnormal Alarm | Temp.

&Speed Deviation Alarm

Air Conveying &Power Outage Alarm | Board Dropped Alarm | Standard Configuration Include | Conveyor System | Guide Rail Structure | Integral Two-stage | Chain Structure | 35B Single Button With Dam-board

LengthenedNickel Plated Carbon Steel Chain | Max.

Width Of PCB Support | 400mm (Optional: 610mm) | Width Range of PCB Support | 50-400mm (Optional: 50-610mm) | Conveyer Direction | LR (Optional: RL) | Fixed Rail Side | Front Rail Fixed (Optional: Rear Rail Fixed) | Conveyor Speed Range | 400-2000mm/min | Conveyor Height | 90015mm | Self-lubrication System | Standard Configuration Include | Optional | Reserved Nitrogen System | Cooling-water System, Nitrogen Flowmeter

Filled Pipes, Air furnace is Optional | Total Nitrogen System | Air Oven Without This Function

Nitrogen Oven Include | Standard Nitrogen Consumption | 300-1000ppm, 26-30m/h | Dual Rails Conveyor System | Dual Rails is Optional

Rail1&4 Fixed distance for 686mm, 2&3 is active | CBS | CBS is Optional

Without Mesh Belt Conveying Function | Temp.

Curve Monitor System | PIS, Temp.

Curve Monitor System

Strip Code System is Optional | - - - - Production Details: Q&A 1) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

2) This machine is easy to use ? if I have no experience, I can also operate it well ? Do you provide the user manual and operating videos to support us ?

Yes, our machine is designed to use easily, Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.

We will provide the English user manual for free, and the operation video is available.

3) If we come to your factory, you will provide the free training ?

Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
