Conical Twin Screw Pvc Profile Extrusion Line Stainless Steel Plastic Corner Production Machine - China
price: check with company for price

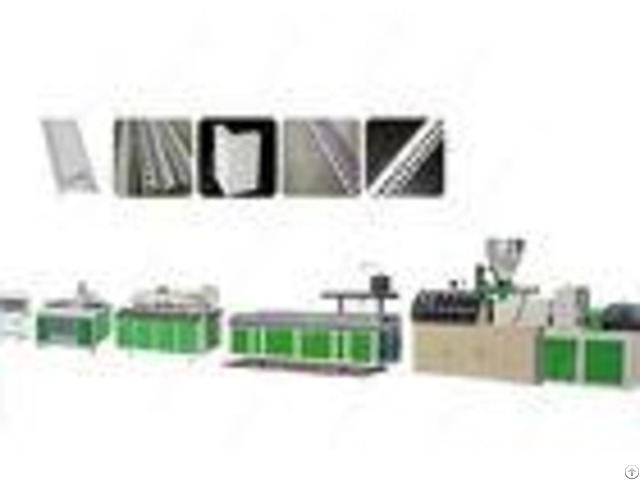

PVC Plastic Corner Production Line, PVC Corner Making Machine Description of PVC Corner Production Line: PVC Corners Production Line consists of twin-screw extruder or single-screw extruder, vacuum stereotypes table, haul-off machine, punching machine, cutter and stacker.
It can be one out of four or one out of six, high output and achieve online punching, which saving time and effort and easy to operate.
Process Flow of PVC Corner Production Line: Raw material +wood power+ additive mixing granulating conical twin-screw extruder profile extrusion mould cool molding die vacuum calibration support belt haul-off cutter rack finished product inspecting & packing Raw materials for PVC Corner : PVC + calcium + other additives.
PVC high chemical stability, panels can be used for a long time.
- - - - Feeder | To feed material into extruder; | Extruder | World famous brand electrical component: Siemens, Schneider, ABB etc; High torque gearbox with adopts NSK/SKF bearing; Siemens/WEG original motor achieved global after service; Bimetallic screw and barrel; Intelligent PLC controlling system with human-friendly interface.
| Die head | 3Cr13/3Cr17 material Complete set include extrusion die head, calibrator and cooling tank Adopt to single, co-extrusion, foam imitation marble profile | calibration table | Include full set of vacuum and water pump Width: 240mm Length: 6000mm Independent operation panel for easy operation | Haul off | Upper/lower caterpillar driven separately and speed control by inverter Fast change type pads for easy operation Install plate is adopts aluminum material | Cutter | Lifting saw cutter with adopts double station dust collection system Synchronous driving by air cylinder or servo motor control | Stacker | Stainless steel304 as touching material Discharge driving by air cylinder | Hot stamping machine | Decorative pattern and film protection of product surface | - - - - Technical information: - - - - Parts | No.
| Name | Brand | 1 Screw and barrel | 1 | Design | German design | 2 | Main materials | 38CrMoALA | 3 | Screw heating | Silicon oil heating | 4 | Barrel heater | Cast aluminum heater | 5 | Barrel has vacuum exhausting system | | 2 Driving parts | 1 | Main motor | Siemens Brand | | 2 | Gear box | Top brand in China | | 3 Electric parts | 1 | Inverter | ABB brand | 2 | Contactor | Schneider brand | 3 | Relay | Schneider brand | 4 | Breaker | Delixi brand | 5 | Temperature meter | RKC brand | 6 | Hauling motor | Densen brand | 7 | Hauling gear box | Hard surface gear box | 8 | Vacuum pump | Yvhuang brand | 9 | Water pump | Yvhuang brand | 10 | Cutting motor | Siemens brand | 11 | PLC | Schneider brand | | 4 Mechanical parts | We use CNC machines to ensure the precision of our mechanical parts | | 5 Protection system | We have a whole set of protection system for our machines, such as: 1 Current overload protection 2 Torque overload protection 3 Oil path blocking alarm 4 Vacuum overload alarm, and so on.
| For more technical information please contact us by email.
| - - - -
Company Contact:
- Posted By: YUREFON MACHINERY CO.,LTD
- Phone: 86-512-58492269
- Address: NO5, North Renmin Road, Changyinsha town,Zhangjiagang,Jiangsu ,China, Zhangjiagang , Jiangsu , China
- Email:
Published date: March 26, 2018
- Business Description: Yurefon have a Stable and United team, everyone is Yurefon's core team member, we work together, mutual understanding, do our best to serve customer, that can make everyone in our team will develop, grow; and better to make customer satisfied, with customer win-win.
