Twelve Heating Zones GS-1200-N large size lead free Nitrogen reflow oven Product features: 1 - The entrance and exit of the ovenis equipped with a nitrogen shielding curtain, which can reduce the spillover of nitrogen, and use a special hardening guide, which is strong and durable.

2 - Simple control panel, centralized power switch, large cover opening and closing, guide rail in one place, simple and convenient operation.

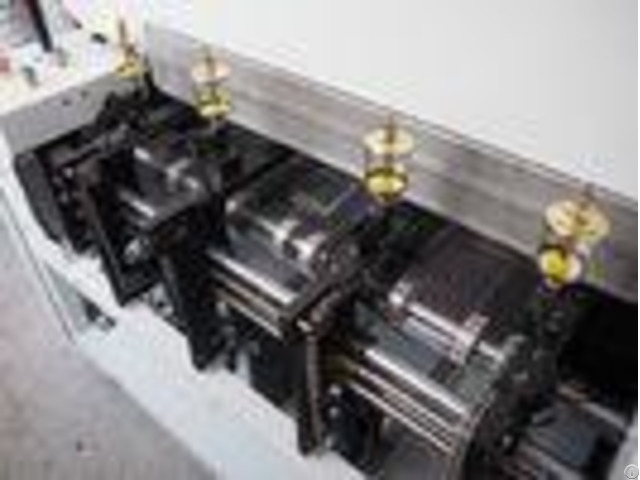

3 - The guide rail adopts the whole two section multi point suspension structure, the guide rail adjust the light and flexible, the horizontal and width direction error and the deformation are small, and the straightness is good.

4 - Optional dual structure, and a four track spacing 686mm, convenient wiring; guide the import and export are equipped with power transition wheel and a safety protective cover for board production; a standard, four fixed rail, two or three rail activities.

Specification: - - - -

Model Name | GS-1200-N | General | Dimension (L*W*H) | 7365*1420*1520mm | Weight | 3350kg | Heating System | Heating Structure | Up 12 / Bottom 12 | Cooling Structure | Up 3 / Bottom 0 | Rectifier Board Structure | Thick Aluminum Plate | Cooling Method | Water Cooling / Forced Air Cooling | Control System | Power Supply | 3 Phase 380V 50Hz | Total Power | 95KW | Start / Normal Power | 40KW / 10KW | Warming Time | About 30 Minutes | Temp.

Setting Range | Indoor Temp.

-300 | Temp.

Control Precision | 1 | Temp.

Control Method | PID Cloesd-loop Control System + SSR Driver | Temp.

Deviation On PCB | 1.5 | Data Storage | Auto Save Operation And Alarm Data

Manual Save Technical Parameters | Abnormal Alarm | Temp.

&Speed Deviation Alarm

Air Conveying &Power Outage Alarm | Board Dropped Alarm | Standard Configuration Include | Conveyor System | Guide Rail Structure | Integral Two-stage | Chain Structure | 35B Single Button With Dam-board

LengthenedNickel Plated Carbon Steel Chain | Max.

Width Of PCB Support | 400mm (Optional: 610mm) | Width Range of PCB Support | 50-400mm (Optional: 50-610mm) | Conveyer Direction | LR (Optional: RL) | Fixed Rail Side | Front Rail Fixed (Optional: Rear Rail Fixed) | Conveyor Speed Range | 400-2000mm/min | Conveyor Height | 90015mm | Self-lubrication System | Standard Configuration Include | Optional | Reserved Nitrogen System | Cooling-water System, Nitrogen Flowmeter

Filled Pipes, Air furnace is Optional | Total Nitrogen System | Air Oven Without This Function

Nitrogen Oven Include | Standard Nitrogen Consumption | 300-1000ppm, 26-30m/h | Dual Rails Conveyor System | Dual Rails is Optional

Rail1&4 Fixed distance for 686mm, 2&3 is active | CBS | CBS is Optional

Without Mesh Belt Conveying Function | Temp.

Curve Monitor System | PIS, Temp.

Curve Monitor System

Strip Code System is Optional | - - - - Production Details: Q&A: 1) What's the whole process to buy the machine from your company ?

1 - Send email or message to us by contact.

2 - Confirm the basic info.

include final price, shipping, payment methods and other terms.

3 - We will send the proforma invoice to you for confirming the order.

4 - Remind the client do the payment according to the method put on proforma invoice.

5 - Arrange the production for the order in terms of the proforma invoice after confirming your full payment.

6 - Machine aging test then check the products in good packaging condition before shipping.

7 - Delievery the machine by air or sea.

2) MOQ ?

1 set machine, mixed order is also welcomed.

3) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.
