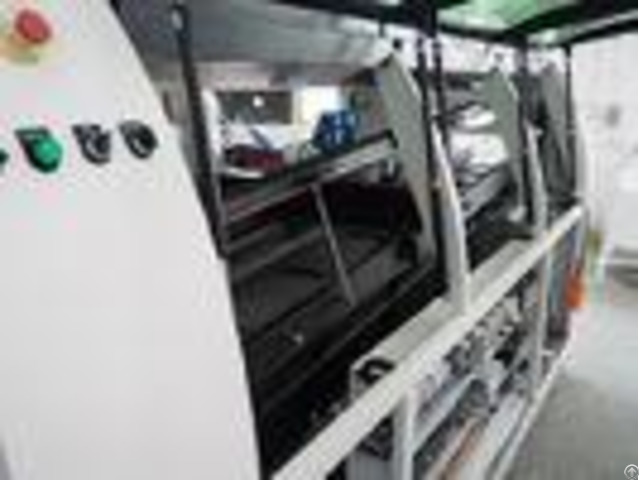

High End Nitrogen Lead Free Wave Soldering Machine With 90w Conveyor Motor - China

high end DA-450LFC-N economical Nitrogen lead free wave soldering with 90W Conveyor Motor Product features: 1 - A temporary storage system for constant pressure welding flux.

2 - It can be selected with partial nitrogen filling protection system, and the solder surface can be measured to about 1000ppm.

3 - The duck mouth claw wave soldering inside the actual scene.

4 - Optional full infrared or full hot air preheating system.

Specification: - - - - Model Name | DA-450LFC-N | PCB Size | Max 350mm | Conveyor Speed Range | 400 - 1800mm/min | Pre-heating Power | 21.6KW | Solder Pot Power | 18KW | Conveyor Motor | AC220V 90W | Cooling Fan | AC220V 370W | Wave Motor | 220V 250W | Washing Finger Motor | 220V 30W | Solder PotTemp.

| Indoor Temp.

~ 300 | Solder Pot Capacity | 480kg | Soldering Angle | Adjustable 4~7 | Air Supply | > 4kg/m | Flux Capacity | 12L | Normal / Startup Power | 12KW / 29.5KW | Net Weight | 1650kg | Dimension (LxWxH) | 4250 x 1360 x 1650mm | Power Supply | 3 Phase 380V 50Hz | - - - - Packaging Details: Q&A: 1) MOQ ? 1 set machine, mixed order is also welcomed.

2) This machine is easy to use ? if I have no experience, I can also operate it well ? Do you provide the user manual and operating videos to support us ? Yes, our machine is designed to use easily, Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.

We will provide the English user manual for free, and the operation video is available.

3) What is the payment way ? We accept the payment terms: Bank transfer, WesterUnion, , Paypal, etc.

4) If we come to your factory, you will provide the free training ? Yes, warmly welcome you to visit our factory, we will arrange the free training for you.

5) What's the whole process to buy the machine from your company ? 1 - Send email or message to us by contact.

2 - Confirm the basic info.

include final price, shipping, payment methods and other terms.

3 - We will send the proforma invoice to you for confirming the order.

4 - Remind the client do the payment according to the method put on proforma invoice.

5 - Arrange the production for the order in terms of the proforma invoice after confirming your full payment.

6 - Machine aging test then check the products in good packaging condition before shipping.

7 - Delievery the machine by air or sea.
