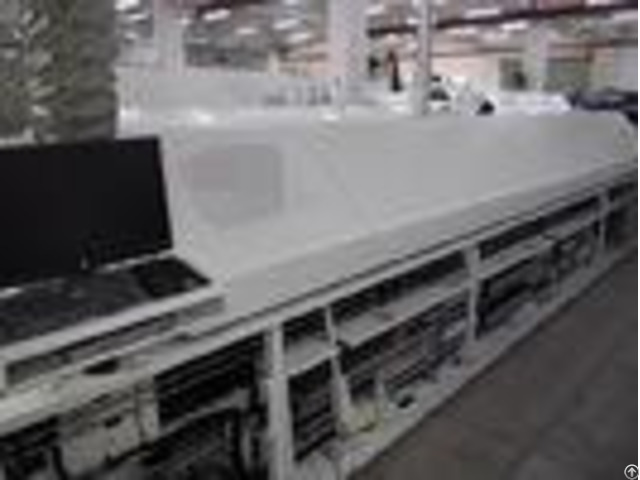

High Performance Lead Free Reflow Soldering Water Cooling For Led Pcb Assembly - China

high performance lead free soldering reflow with Water Cooling for LED PCB assembly Product features: 1 - The entrance and exit of the oven is equipped with a nitrogen shielding curtain, which can reduce the spillover of nitrogen, and use a special hardening guide, which is strong and durable.

2 - Optional dual structure, and a four track spacing 686mm, convenient wiring; guide the import and export are equipped with power transition wheel and a safety protective cover for board production; a standard, four fixed rail, two or three rail activities.

3 - The heating area is equipped with heat efflux system, can effectively reduce the furnace neizhu flux residues.

4 - The guide rail adopts the whole two section multi point suspension structure, the guide rail adjust the light and flexible, the horizontal and width direction error and the deformation are small, and the straightness is good.

Specification: - - - - Model Name | DS-800 | General | Dimension (L*W*H) | 5245*1420*1520mm | Weight | 2650kg | Heating System | Heating Structure | Up 8 / Bottom 8 | Cooling Structure | Up 2 / Bottom 0 | Rectifier Board Structure | Thick Aluminum Plate | Cooling Method | Water Cooling / Forced Air Cooling | Control System | Power Supply | 3 Phase 380V 50Hz | Total Power | 64KW | Start / Normal Power | 28KW / 7KW | Warming Time | About 30 Minutes | Temp.

Setting Range | Indoor Temp.

-300 | Temp.

Control Precision | 1 | Temp.

Control Method | PID Cloesd-loop Control System + SSR Driver | Temp.

Deviation On PCB | 1.5 | Data Storage | Auto Save Operation And Alarm Data Manual Save Technical Parameters | Abnormal Alarm | Temp.

&Speed Deviation Alarm Air Conveying &Power Outage Alarm | Board Dropped Alarm | Standard Configuration Include | Conveyor System | Guide Rail Structure | Integral Two-stage | Chain Structure | 35B Single Button With Dam-board LengthenedNickel Plated Carbon Steel Chain | Max.

Width Of PCB Support | 400mm (Optional: 610mm) | Width Range of PCB Support | 50-400mm (Optional: 50-610mm) | Conveyer Direction | LR (Optional: RL) | Fixed Rail Side | Front Rail Fixed (Optional: Rear Rail Fixed) | Conveyor Speed Range | 400-2000mm/min | Conveyor Height | 90015mm | Self-lubrication System | Standard Configuration Include | Optional | Reserved Nitrogen System | Cooling-water System, Nitrogen Flowmeter Filled Pipes, Air furnace is Optional | Total Nitrogen System | Air Oven Without This Function Nitrogen Oven Include | Standard Nitrogen Consumption | 300-1000ppm, 18-20m/h | Dual Rails Conveyor System | Dual Rails is Optional Rail1&4 Fixed distance for 686mm, 2&3 is active | CBS | CBS is Optional Without Mesh Belt Conveying Function | Temp.

Curve Monitor System | PIS, Temp.

Curve Monitor System Strip Code System is Optional | - - - - Production Details: Honor Customer: Q&A: 1) Why choose us ? 1 - 20yrs+ Industry experience stablished in 1997 - 2 - Professional oversea solution team provide most efficent solution for clients.

3 - Welcome agent for different area to make win-win cooperation.

2) If we come to your factory, you will provide the free training ? Yes, warmly welcome you to visit our factory, we will arrange the free training for you.

3) What is the payment way ? We accept the payment terms: Bank transfer, WesterUnion, , Paypal, etc.
