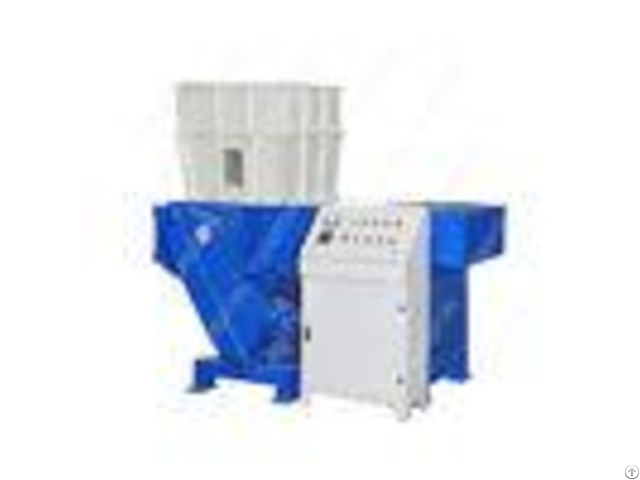

Multi Function Single Shaft Plastic Waste Shredding Machine Sn S3980 Low Noise - China

Plastic Film/Jumbo Bag/ Woven Bag Shredding Recycling Multi-Function Single Shaft Plastic Shredder Application of Plastic Single shaft shredder:

1 - Plastic film, Woven bag, PET bottle, Plastic Drum, Plastic pipe, Plastic board, Plastic Pallet Plastic Lump, Fiber, and high strength plastic Like (ABS, PC, PPS) high capacity shredder

2 - Wood including wood timber, Tree Root, Wood Pallet shredder equipment

3 - Cable and electrical wire shredding process

4 - Paper: Newspaper and Carton box and books

5 - Light metal: Aluminum Can, Aluminum Scraps

6 - TV Shell, Washing machine shell.

Regrigerator Body.

Circuit Board.

7 - Rubber

8 - Texible product, Cloth or Fiber product

9 - Glass product

Key features of Garbage shredder machine:

1 - Safety Devices in line

2 - The hydraulic Ram pushes material against the rotor

3 - Various Screen size for different material.

4 - Various Rotating blade for processing different material.

Blades are made from hardened DC53 steel.

The Blades can be turned 4 times before it does not work.

5 - Absorbs vibrations caused by the shredding of the material.

this protects the machine and all parts in the machine.

6 - Water cooled gearbox guards against overloading.

Hardened teeth for the gearbox.

7 - Protective bearing covers to avoid foreign contaminations entering the bearing house Also grease points to release oil at intervals to increase service life.

8 - The Hydraulic ram pressure and timing can be adjusted to suit different material.

The machine be fitted with wind cooled two speed pump.

Main parameter for single shaft shredder: - - - -

Shredder Model | SN-3063 | SN-3980 | SN-48100 | SN-57120 | Dimension L/W/H(mm) | 325017502650 | 415020002750 | 470025502950 | 535028503060 | Cutting Chamber C/D(mm) | 1410800 | 14101000 | 14101200 | 14101500 | Height of discharge port E(mm) | 500 | 500 | 500 | 560 | Cylinder Stroke(mm) | 900 | 900 | 900 | 900 | Rotor Diameter(mm) | 300.3 | 390.3 | 480.3 | 570.3 | Main Shaft Speed (r/min) | 74 | 74 | 74 | 74 | Screen Mesh(mm) | 40 | 40 | 40 | 40 | Rotor-knives(PCS) | 30 | 39 | 48 | 57 | Stator-knives(PCS) | 2 | 2 | 2 | 2 | Main Motor Power(KW) | 30 | 37 | 45 | 55 | Hydraulic Motor Power(KW) | 2.2 | 2.2 | 5.5 | 5.5 | Weight(KG) | 4500 | 7000 | 9500 | 11500 | - - - -
