Plastic Ceiling Wall Panel Pvc Profile Extrusion Line With Stable Plc Control System - China

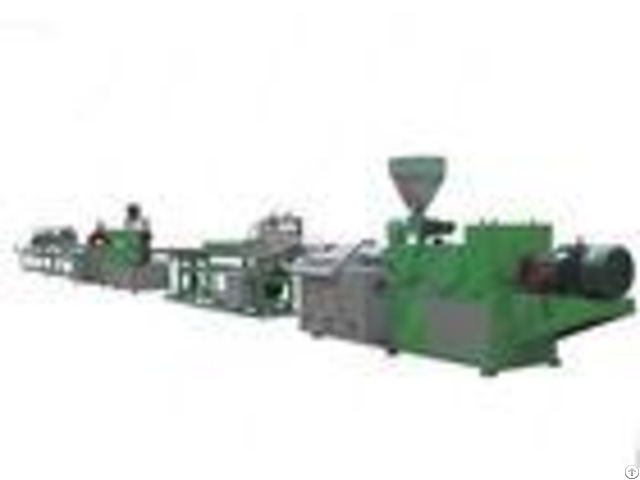

PVC Plastic Ceiling Wall Panel Extrusion Making Machine Introduction of the PVC wall panel extrusion making machine: Description of PVC panel line: 1 - This machine With PLC Control system in the production line, reliable and stable performance.

2 - The down stream equipment includes vacuum calibration and cooling unit, haul-off unit, cutting machine and stacker.

3 - The calibration unit is equipped with large forced cooling system so that it can provide perfect calibration effect.

4 - The hall-off unit is caterpillar style.

The lower one is fixed and the upper one can be adjusted according to the plate size.

5 - The cutting machine is able to set length and provide accurate automatic cutting.

6 - The stacker is attached with material cart and rubber protection layer to prevent products from damage, and easy operation.

Process Flow of PVC panel line: Raw material +wood power+ additive mixing granulating conical twin-screw extruder profile extrusion mould cool molding die vacuum calibration support belt haul-off cutter rack finished product inspecting & packing Raw materials for pvc ceiling panel: PVC + calcium + other additives.

PVC high chemical stability, panels can be used for a long time.

- - - - Feeder | To feed material into extruder; | Extruder | World famous brand electrical component: Siemens, Schneider, ABB etc; High torque gearbox with adopts NSK/SKF bearing; Siemens/WEG original motor achieved global after service; Bimetallic screw and barrel; Intelligent PLC controlling system with human-friendly interface.

| Die head | 3Cr13/3Cr17 material Complete set include extrusion die head, calibrator and cooling tank Adopt to single, co-extrusion, foam imitation marble profile | calibration table | Include full set of vacuum and water pump Width: 240mm Length: 6000mm Independent operation panel for easy operation | Haul off | Upper/lower caterpillar driven separately and speed control by inverter Fast change type pads for easy operation Install plate is adopts aluminum material | Cutter | Lifting saw cutter with adopts double station dust collection system Synchronous drivingby air cylinder or servo motor control | Stacker | Stainless steel304 as touching material Discharge driving by air cylinder | Hot stamping machine | Decorative pattern and film protection of product surface | - - - - Technical information: - - - - Parts | No.

| Name | Brand | 1 Screw and barrel | 1 | Design | German design | 2 | Main materials | 38CrMoALA | 3 | Screw heating | Silicon oil heating | 4 | Barrel heater | Cast aluminum heater | 5 | Barrel has vacuum exhausting system | | 2 Driving parts | 1 | Main motor | Siemens Brand | | 2 | Gear box | Top brand in China | | 3 Electric parts | 1 | Inverter | ABB brand | 2 | Contactor | Schneider brand | 3 | Relay | Schneider brand | 4 | Breaker | Delixi brand | 5 | Temperature meter | RKC brand | 6 | Hauling motor | Densen brand | 7 | Hauling gear box | Hard surface gear box | 8 | Vacuum pump | Yvhuang brand | 9 | Water pump | Yvhuang brand | 10 | Cutting motor | Siemens brand | 11 | PLC | Schneider brand | | 4 Mechanical parts | We use CNC machines to ensure the precision of our mechanical parts | | 5 Protection system | We have a whole set of protection system for our machines, such as: 1 Current overload protection 2 Torque overload protection 3 Oil path blocking alarm 4 Vacuum overload alarm, and so on.

| For more technical information please contact us by email.

| - - - -
