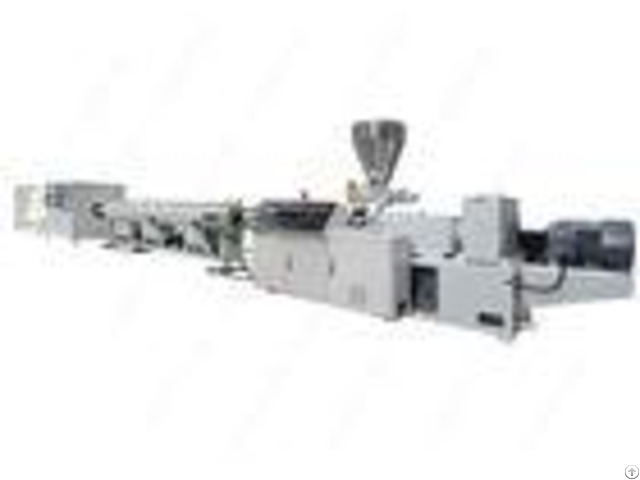

Sjz 65 132 High Capacity Pvc Pipe Extrusion Making Machine Plc Control 250 Kg H - China

PVC Pipe Extrusion Making Machine Application: Agricultural water supply & water discharge system, architectural water supply & discharge system, wire laying system, etc.

PVC pipes.

PVC pipe diameter range: 16mm800mm.

Double layer and multiple layer PVC pipes can also be made(for example, three layer pipe with core layer foamed).

Process Flow of PVC Pipe Machine: Material Mixer Forced Feeding Conical double screw extruder mould&calibrator vacuum spay cooling tank printerhaul-off cutter stacker Features Of PVC Pipe Making Machine: 1 - Model SJZ series conical twin screw extruder is a kind of special equipment for extruding PVC compound.

With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.

2 - The conical twin screws have applied oil cooling system.

Barrel is cooled by special wind cooling system.

3 - The conical twin screw extruder system has applied special computer control.

According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.

4 - The conical twin screw is made by high precision special digital screw miller; extruding property can be highly harmonized.

It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.

5 - The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged.

It can bear larger extruding pressure.

6 - The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated.

The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be 1degree.

Main Parameter Reference( Pvc Pipe Machine Line ) - - - - Model number | PVC-16/63 | PVC-20/110 | PVC-50/160 | PVC-75/250 | PVC-110/315 | PVC-200/450 | PVC-315/630 | PVC-500/800 | Pipe diameter | 16-63mm | 20-110mm | 50-160mm | 75-250mm | 110-315mm | 200-450mm | 315-630mm | 500-800mm | Max output | 120kg/h | 120kg/h | 180kg/h | 300kg/h | 450kg/h | 650kg/h | 800kg/h | 1400kg/h | Production rate | 1.5-15m/min | 0.8-8m/min | 0.5-5m/min | 0.4-4m/min | 0.3-2m/min | 0.1-1m/min | 0.07-0.7m/min | 0.05-1 m/min | Extruder model | SJZ-50/105 | SJZ-50/105 | SJZ-55/110 | SJZ-65/132 | SJZ-80/156 | SJZ-92/188 | SJZ-92/188 | SJZ-105/220 | Motor power | 45kw | 45kw | 55kw | 75kw | 105kw | 160kw | 205kw | 305kw | Center height | 1000mm | 1000mm | 1000mm | 1000mm | 1100mm | 1100mm | 1200mm | 1350mm | Installation area | 22*2.5*2.0m | 24*2.8*2.0m | 24*2.8*2.0m | 30*2.8*2.2m | 35*3.0*2.4 m | 36*3.0*2.4 m | 38*3.2*2.8 m | 42*3.5*3.2 m | - - - - Technical information: - - - - Parts | No.

| Name | Brand | 1 Screw and barrel | 1 | Design | German design | 2 | Main materials | 38CrMoALA | 3 | Screw heating | Silicon oil heating | 4 | Barrel heater | Cast aluminum heater | 5 | Barrel has vacuum exhausting system | | 2 Driving parts | 1 | Main motor | Siemens Brand | | 2 | Gear box | Top brand in China | | 3 Electric parts | 1 | Inverter | ABB brand | 2 | Contactor | Schneider brand | 3 | Relay | Schneider brand | 4 | Breaker | Delixi brand | 5 | Temperature meter | RKC brand | 6 | Hauling motor | Densen brand | 7 | Hauling gear box | Hard surface gear box | 8 | Vacuum pump | Yvhuang brand | 9 | Water pump | Yvhuang brand | 10 | Cutting motor | Siemens brand | 11 | PLC | Schneider brand | | 4 Mechanical parts | We use CNC machines to ensure the precision of our mechanical parts | | 5 Protection system | We have a whole set of protection system for our machines, such as: 1 Current overload protection 2 Torque overload protection 3 Oil path blocking alarm 4 Vacuum overload alarm, and so on.

| - - - -
