Wpc Wood Plastic Composite Extrusion Line Sjsz 51 105 For Pvc Window Profiles Production - China

price: check with company for price

Wpc Wood Plastic Composite Extrusion Line Sjsz 51 105 For Pvc Window Profiles Production

Products Photos Catalog Wpc Wood Plastic Photos Catalog

WPC - Wood Plastic Composite Production Line WPC profile extrusion equipment consists of twin-screw extruder, mold, stereotypes, traction, cutting machine and loading table.

After the replacement of mold, wood-plastic extruder also can used for PVC doors and windows profiles production.

Wood-plastic composite material that produced by wood-plastic equipment production line is a new type of green material.

It is mainly to mix plastic raw materials (recycled PVC, PP, PE powder) and plant fiber (30-60% straw, wood flour, rice husk) together with a certain proportion, and then forming from processing.

It has advantages of both wood and plastic, which is similar to the appearance of wood and has secondary processing capacity.

It has the advantages of low moisture absorption, corrosion resistance and pest resistance, less maintenance.

It is an excellent alternative to replace outdoor applications of wood, plastic or metal materials.

In addition, it is mainly used in the manufacture of building panels, decorative panels, railings, pavement, steps, outdoor table siding and chairs, arbor, tree bed etc.

Wood Plastic Composite Production Line: - - - - Model | SJSZ 51/105 | SJSZ 65/132 | SJSZ 80/156 | SJSZ 92/188 | Screw Diameter (mm) | 51mm/105mm | 65mm/132mm | 80mm/156mm | 92mm/188mm | Output (Kg/h) | 80-120 | 160-200 | 250-350 | 400-500 | Main Drive Power (kw) | 18.5 | 37 | 55 | 110 | Heating Area (Kw) | 3 zones, 18Kw | 4 zones, 20Kw | 5 zones, 38Kw | 6 zones, 54Kw | - - - - Work flow and detailed informationof Wood Plastic Composite Production Line : - - - - Feeder | Feeding material into the extruder; | Extruder | World famous brand electrical component: Siemens, Schneider, ABB etc.

High torque gearbox with adopts NSK/SKF bearing; Siemens/WEG original motor achieved global after service; Bimetallic screw and barrel; Intelligent PLC controlling system with human-friendly interface.

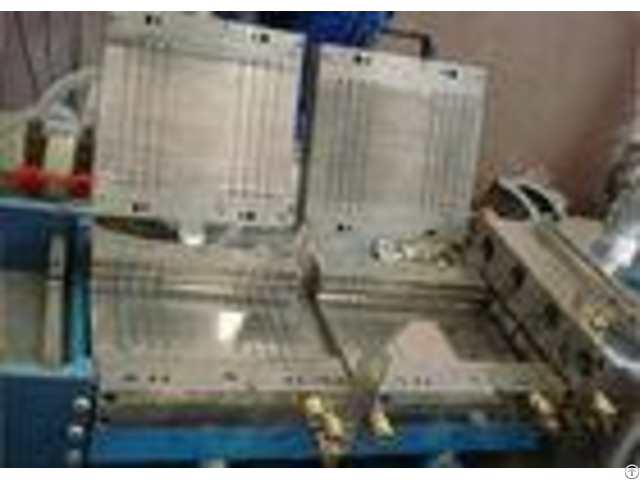

| Die head | 3Cr13/3Cr17 material Complete set include extrusion die head, calibrator and cooling tank Adopt to single, co-extrusion, foam imitation marble profile | Calibration table | Include full set of vacuum and water pu Length: 6000mm Independent operation panel for easy operation | Haul off machine | Upper/lower caterpillar driven separately and speed control by inverter Fast change type pads for easy operation Install plate is adopts aluminum material | Cutter | Lifting saw cutter with adopts double station dust collection system Synchronous driving by air cylinder or servo motor control | Stacker | Stainless steel304 as touching material Discharge driving by air cylinder | Hot stamping machine | Decorative pattern and film protection of product surface | - - - -


Company Contact:


  • Phone: 86-512-58492269

  • Address: NO5, North Renmin Road, Changyinsha town,Zhangjiagang,Jiangsu ,China, Zhangjiagang , Jiangsu , China

  • Email: Email


Published date: March 26, 2018

  • Business Description: Yurefon have a Stable and United team, everyone is Yurefon's core team member, we work together, mutual understanding, do our best to serve customer, that can make everyone in our team will develop, grow; and better to make customer satisfied, with customer win-win.
