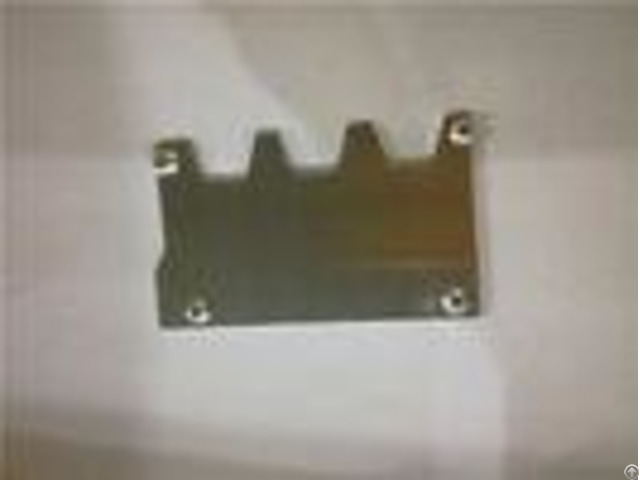

Progressive Rivet Press Dies Two Cavities Stamped Aluminum Heat Sink 0 003mm Precision - China

Mass-produce stamped aluminum heat sink progressive die, stamping tool Stamping Capability A: The min.

pitch: 0.5mm B: Highest stamping speed: 600SPM/min or more C: Precision: 0.003mm D: Rate of hole diameter and thickness 0.85: 1 E: Stamping material thickness: 0.05-2.0mm METS Precision-Tool uses a variety of 2D and 3D cad/cam Software to develop, design, and plan the layout of our dies.

(see below for the full software list & details).

We have the resources to build a die for any application.

When high volumes of production are expected, we can build a dependable tool with longevity in mind.

We can also produce low-cost tools for prototyping and sampling applications.

Die protection is always on our mind, and DACO Precision-Tool can build in sensors that will help prevent costly damage to the die.

Riveting die is a sturdy and attractive way to make one part joins in custom metal .

This tooling add one vibrating disk.

The center small parts will be in the progressive die by vibrating disk.

Here you'll find this riveting tools is easy riveting and the speed is very fast, neerly 120ps/munite.

Here at METS Precision-Tool its our goal to design and build our Compound Dies to exceed 100 strokes per minute to support high volume production.

We can achieve this by building in sensors and other accessories to protect the die from damage.

Cycle time is always kept in mind when designing and building our Compound Die tooling.

We can build the die to stamp the part at the accuracy you need.

Parts are produced when the feed system pushes (strip or coil stock) of raw material into the Compound Die; at each stroke or cycle a finished flat part will blanked or released from the raw material.

The feed rate of the material is determined by the size of the part.

Larger parts need more time to exit the die, where smaller parts exit quicker allowing for faster run times.

Typically, compound dies do not require a cut-off station because the parts are blanked through from the strip, but many times is added to help manage scrap material.

Finished parts will be removed from the die by a knock-out and will fall onto a chute or slider where they flow into the collection bin.

The scrap will exit the die in strip form or in piece form depending on if youve included a scrap cut-off station.

Scrap can be collected in bins or hoppers on the exit end of the die Designs, tests and manufactures metal stamping dies using innovative, cost-effective engineering solutions for medium to large complex tooling systems.

Our manufacturing capabilities include the production of progressive dies, transfer dies, line dies and more.

Custom stamping dies can be created for various applications in industries such as automotive and aerospace Tool&Die Profile - - - - General Capabilities | Design Modeling 2D, 3D, processing, assembling | Die Location Technical Support | Inspection | Detail Tooling Documentation | DFMEA/PFMEA | Quick Building Prototypes | Die Types | Forming Dies | Precision Progressive Stamping Dies | Secondary Dies | High Speed Steel Stamping Dies | Precision Blanking Dies | Forming Die | Tooling Material | Carbide(CD650, V3, KD20) | ASP-23 | ASP-60 | S55C---45#55 | AL7075 | SKD11 | Tooling Life | 50 Million to 1000 Million Times | Die Concept | 2-Plate Die | 3-Plate Die | Module Die | Production Equipment | CNC | SODICK Nice Surface EDM | P/G | Drill | SODICK Wire Cutting Machine | J/G | Milling Machine | WAIDA Profile Grinder Machine | | Stamping Equipment | AIDA | PURDER | MICO | MICO | | | Stamping Product | Custom Stamping | SIM shrapnel | Spring clip | Battery shrapnel | Shield Drawing | Press-Fit Terminal | Lead Frame | Power Contact Terminal | PC Terminal parts | Additional Services Provided | Custom Packing | Packaging | Heat Treat | Plating | | | Delivery | 3-5 Week | 3-6 Week | 4-7 Week | - - - - We accept your any request on shipment.

By air, by sea, and by Express are acceptable.

- - - - | By Express | By Air | By Sea | West Europe | 3-5 days | 4-6 days | 22-30days | USA &Canada | 3-4days | 5-6 days | 16-27days | South Asia | 3-5 days | 3-7 days | 12-20 days | Japan&South Korea | 2-3 days | 3-4 days | 10-13 days | Russia | | | 30-40 days | - - - - Packing: First Step Wrapping by PE film to anti-rust.

Second wooden case without need of fumigation.

Or as your required.

To get quick response, please contact us by mail directly Q: How can I get quotation quickly A: Please send your inquiry and technical details Our sales Consultand will contact you in 24hrs on business time.

Q: How can I get technical support from you when we are designing a new product? A: Please feel free to contact with the same email .

There will be an exclusive engineer available for you.

Q: How can I contact you when I have some suggestion about your products or service? A: Please feel free to contact email or phone.

We will follow on your suggestion and try our best to make you satisfied.

Stamping die Shows:

Company Contact:

• Posted By: Xiamen METS Industry & Trade Co., Ltd

• Phone: 86-138-60452810

• Address: No.175,Shigu Road,Jimei district,Xiamen,China,361 021, Xiamen , Fujian , China

• Email:

• Website: https://www.metal-stampingdies.com

• Business Description: 2006, Established in Xiamen, METS is a professional hardware company specialized in mould design, mould manufacturing of contact and machine shell, automotive, electronics, LED lampshade, lead frame and lamination core(stator and rotor) etc.

  As well as precision metal stampings production.
