Sheet Molding Compound Metal Stamping Mould For Brass Alloy Moving Contact - China

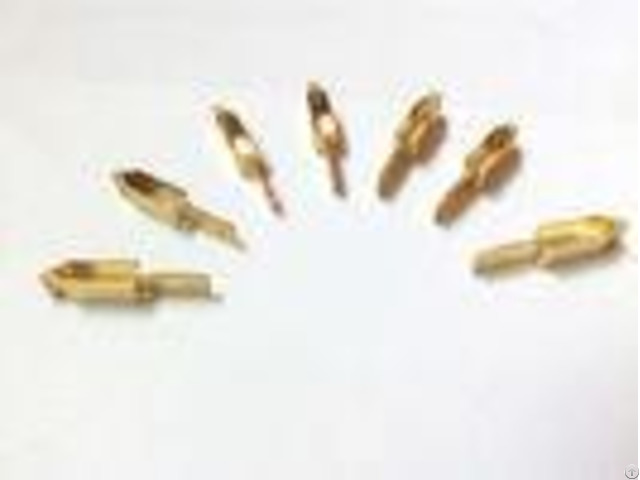

Sheet molding compound mold for brass alloy moving contact with brass material Terminal Blocks - Headers, Plugs and Sockets, PCB Terminal Blocks, Special Type Terminal Blocks, all those toolings could make as progressive die.

The tool room was designed and developed to support the needs of our team by providing the best in class tooling to our discerning client base.

At the heart of this venture is a CNC machining cell that was engineered using lean principles.

The team that developed the cell focused on the elimination of waste.

In addition to the CNC cell, the tool room is supported by several Wire EDMs, and waterjet cutting that can create development blanks as well as speed up the tool machining process.

Pierce & Cut Die Stamping is a very cost-effective way to quickly stamp flat, rectangular shaped parts such as shims, spacers, and plates.

A benefit of Pierce & Cut Die Stamping is that raw material is better utilized reducing the total amount of scrap material produced over other stamping methods.

Parts are produced when the feed system pushes (strip or coil stock) of raw material into the Pierce & Cut Die; at each stroke or cycle a finished flat part will be cut off the end of the strip.

This type of die requires that the raw material width is cut to the size needed for the part.

The feed rate of the material is determined by the length of the part.

Longer parts need more time per stroke to get the strip in position for the next stroke.

Thickness also influences that feed rate.

Thicker parts need the press to run a bit slower than thinner parts.

Pierce & Cut Dies punch out holes and notches on the first stroke, and then the second and final stroke is the cut-off, where the completed part is cut from the strip.

Once cut from the strip finished parts will be exit the die and will fall onto a chute or slider where they flow into the collection bin.

The scrap is typically punched through the die and is collected under the press, or next to the press using chutes or slides.

- - - - General Capabilities | Design Modeling 2D, 3D, processing, assembling | Die Location Technical Support | Inspection | Detail Tooling Documentation | DFMEA/PFMEA | Quick Building Prototypes | Die Types | Forming Dies | Precision Progressive Stamping Dies | Secondary Dies | High Speed Steel Stamping Dies | Precision Blanking Dies | Forming Die | Tooling Material | Carbide(CD650, V3, KD20) | ASP-23 | ASP-60 | S55C---45#55 | AL7075 | SKD11 | Tooling Life | 50 Million to 1000 Million Times | Die Concept | 2-Plate Die | 3-Plate Die | Module Die | Production Equipment | CNC | SODICK Nice Surface EDM | P/G | Drill | SODICK Wire Cutting Machine | J/G | Milling Machine | WAIDA Profile Grinder Machine | | Stamping Equipment | AIDA | PURDER | MICO | MICO | | | Stamping Product | Custom Stamping | SIM shrapnel | Spring clip | Battery shrapnel | Shield Drawing | Press-Fit Terminal | Lead Frame | Power Contact Terminal | PC Terminal parts | Additional Services Provided | Custom Packing | Packaging | Heat Treat | Plating | | | Delivery | 3-5 Week | 3-6 Week | 4-7 Week | - - - - Q: Whats your manufacture capability? We use Sodick/Charmilles to frabricate die inserts, dimension we can do is +/-0.002mm.

Q: Can you make all the dimensions are according to our design/samples? We can guarantee that all the dimensions are made according to your drawing/sample.

Please notice that dimension tolerence we can do is +/-0.003mm.

Q: Did the stamping die suit for my press machine? --- The stamping die is made according to your press machines specification.

Before start making die parts, we will send the design for your approval.

Q: Whats your advantage compare with other suppliers on the market? We are stamping factory, have a team contains die design, making, maintance and stamping production.

We know how important the good mold for stamping production.

All our engineers are with more than 10 years working experience.

They are more professional on precision stamping field.

All the die parts we made are by Slow-speed wire EDM, can gurantee the dimension.

Many of them make it by middle-speed wire EDM/fast-speed wire EDM Stamping die details:

Company Contact:

• Posted By: Xiamen METS Industry & Trade Co., Ltd

• Phone: 86-138-60452810

• Address: No.175,Shigu Road,Jimei district,Xiamen,China,361 021, Xiamen , Fujian , China

• Email:

• Website: https://www.metal-stampingdies.com

• Business Description: 2006, Established in Xiamen, METS is a professional hardware company specialized in mould design, mould manufacturing of contact and machine shell, automotive, electronics, LED lampshade, lead frame and lamination core(stator and rotor) etc.

  As well as precision metal stampings production.
