Glass Bottle Beer Filling Machine15 Capping Heads 12kw Motor Power 12000bph - China

BGF 60-60-15High Quality Beer Bottle Filler And Capper With Factory Price Description:

1 - This beer bottle filler and capper is designed for Glass Bottle & PET Bottle.

2 - This beer bottle filler and capper capacity is 10000BPH for 500ML Bottle.

(BPH - Bottles Per Hour)

3 - This beer bottle filler and capper is used for beer filling, beer bottling.

4 - Machine introduction or operation touch screen and button can be supply in English or your country language.

5 - Efficiency and convenient communication with tools online, e-mail and telephone.

6 - The equipment we sell all have one year warranty.

Feature:

1 - The material height in the tank is controlled by electric probe so as to ensure precise liquid level and reliable filling .

2 - The movement of the jars and capping heads is driven by electricity in order fit bottles of different sizes.

3 - The capper has the function of automatic deloading, which helps lower the bottle breakage.

4 - With a full stainless steel magnetic hopper, the unscrambing, feeding and discharging of crown caps are all performed by magnetic force.

The caps are free from deforming and can flow smoothly in large quantities during transmission.

5 - With high pressure frothing device, it is capable of double vacuum-pumping.

Specification: - - - -

Model | Washingheads | Fillingheads | Cappingheads | Capacity(b/h)500ml | Motor power(KW) | Overall dimension(mm) | BCGF14-12-4 | 14 | 12 | 4 | 1000bph | 1.5KW | 2100x1400x2500 | BCGF18-18-6 | 18 | 18 | 6 | 2000bph | 2.2KW | 2460x1720x2650 | BCGF24-24-8 | 24 | 24 | 8 | 3000bph | 3KW | 3100x2100x2650 | BCGF32-32-10 | 32 | 32 | 10 | 6000bph | 4KW | 3500x2500x2650 | BCGF40-40-10 | 40 | 40 | 10 | 8000bph | 7.5KW | 4600x1800x2650 | BCGF48-48-12 | 48 | 48 | 12 | 9000bph | 9.5KW | 5200x4500x3400 | BCGF60-60-15 | 60 | 60 | 15 | 12000bph | 12KW | 6500x4500x3400 | - - - - Details: 1 - The SG120 capping machine is a supporting equipment with 3IN1 machine, whose role is lifting a cap into the lid of the hopper of the the lid settling machine at a certain speed, and then after sequence caps are conveying to capping machine for capping by the lid sorting machine

2 - The machine adopts belt cover equipped with tooth, consequently, with capping speed efficiently, smooth operation, low noise, no damage to the lid.

3 - When the machine is working normally, the start-up and pause of the capping machine is controlled by the proximity switch in the hopper of settling machine.

When the number of caps in the hopper is lower than the number controlled by the proximity switch, the caps motor begins to start and cap .

When the number of covers in the hopper is higher than the number controlled by the proximity switch, the caps motor is stopped and the caps motor is restarted until the number of caps in the hopper is again lower than the number controlled by the proximity switch to attain combination with the host automation .

In addition, this also keeps a reasonable range with the number of caps inside the settling device to achieve better effect.

The machine in touch with the lip of cap is made of high quality stainless steel stuffs and engineering plastics, and meets the requirement of hygiene the for food industry.

4 - The machine with small footprint, simple structure, handy operation and maintenance, is the preferred product of the drinking industry about covering lids

picture1: Transportation: 304 stainless steel andIncludes a motor

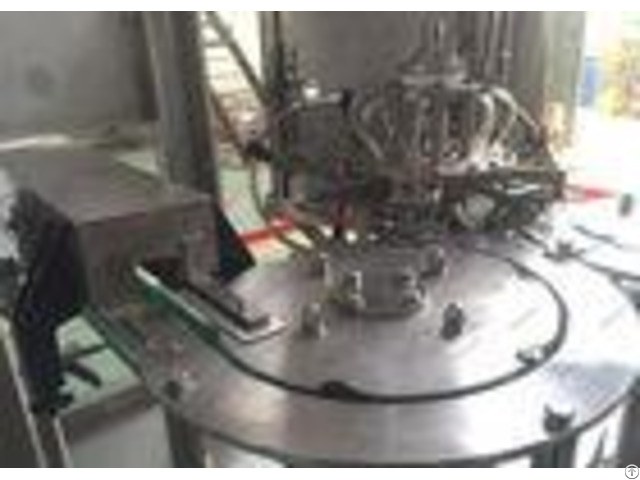

picture2: Automatic Capping machine
