Soda Beverage Bottle Filling Equipmentsmall Scale 3in1 Machine Adjustable Speed - China

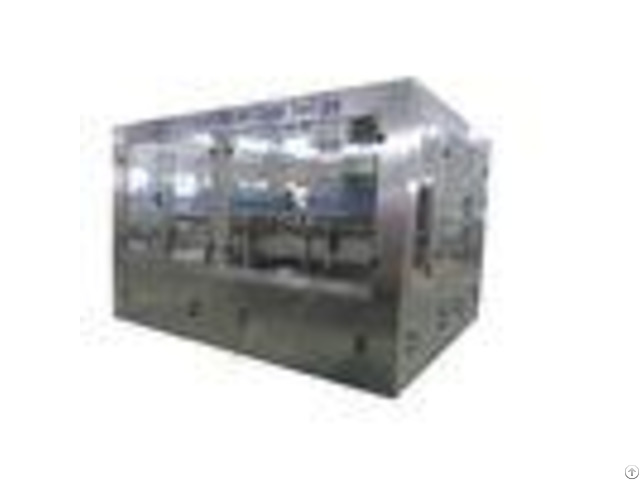

DCGF32-32-10 beverage filling 3IN1machine Description 1 - The Carbonated Water / Gasified Water Filling Machine is mainly used in production gas containing water of PET polyester bottle-packing carbonated beverage, such as Coca-cola, Pepsi, spirit drink, etc.

2 - The Carbonated Water / Gasified Water Filling Machine carries out washing bottle, filling and capping on one machine.

The whole machine design is reasonable.

The apperance is beautiful and the maintenance is convenient.

The automatic carbonated water filling machine adopts bottle handing technology to make changing bottle more convenient, faster and easier.

The main machine adopts advanced PLC control, touch screen and no-bottle, no cap system.

The key electric elements are from internationl famous brand.

Feature 1 - Including bottle air conveyor, Rinser-Filler-Capper and flat conveyor and cap uploader.

2 - It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss 3 - Bottles are rinsed internally and externally, No bottle, No Rinsing 4 - Precise and Accurate Pressure filling valves give even filling in all bottles at the same level, No bottle, No filling.

5 - Magnetic capping head eliminates over-tightening of caps, No bottle, No capping.

6 - Adjustable speed by inverter.

7 - Fast and easy changeover to various bottle sizes.

8 - Unique design bottle neck suspend system makes bottle move smoothly.

9 - Easy to operate, clean and maintain.

If you are interested in our machines, please don't hesitate to contact me.

We can meet you what you want, looking forward to your inquiry.

Let's go together in the process of cooperation to the good prospects.

Specification - - - - Model | CGFD12-12-6 | CGFD18-18-6 | CGFD24-24-8 | CGFD32-32-10 | CGFD40-40-12 | Washing No | 12 | 18 | 24 | 32 | 40 | Filling No | 12 | 18 | 24 | 32 | 40 | Capping No | 6 | 6 | 8 | 10 | 12 | Capacity(500ml) | 3000BPH | 5000BPH | 8000BPH | 12000BPH | 15000BPH | Installed Capacity | 3.5kw | 4kw | 4.8kw | 7.6kw | 8.3kw | - - - - It consists of the washing part, filling part, capping part.

Washing part 1 - All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean 2 - 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing 3 - 304 stainless steel washing pumps 4 - Rinse the empty plastic bottle Filling part 1 - The filling station using all metal (not plastic) 304 stainless steel contact parts gives consistent accurate, high precision filling nozzle together with vacuum pump regurgitant system, to ensure the high filling precision, ensure same filling level 2 - Filling temperature is ajustable.

3 - Centre 304L stainless steel filling nozzle used which are designed for maximum flow rate and minimum bottle.

4 - All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean 5 - No bottle no filling 6 - Filling carbonated beverage into the rinsed plastic bottle.

Capping part: 1 - Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping 2 - All 304stainless steel construction 3 - No bottle no capping 4 - Automatic stop when lack of bottle 5 - Sealing the filled plastic bottle carbonated beverge
