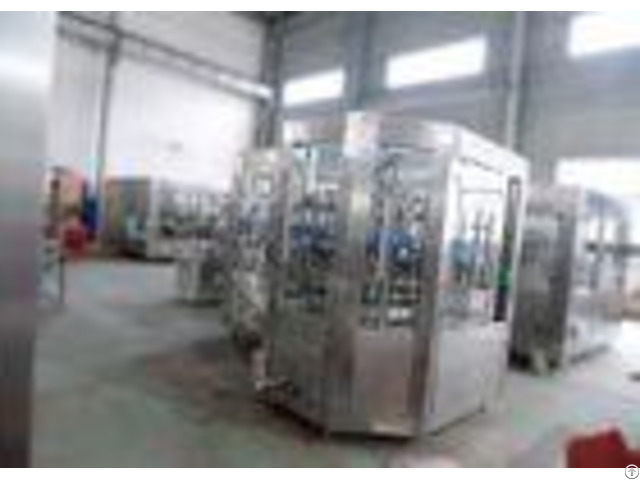

Washing Filling Capping 3 In 1 Juice Rotary Piston Fillersemi Automatic - China

Washing filling capping 3 in 1 juice filling machine manufacturers and semi automatic filling machine with bottles Features: Advantage of 3 in 1 juice filling machine 1 - The machine is designed more compact, more stable of controlling system, adopts with German FESTO, easy to operate and high quality.

2 - Using high accuracy and high speed filling valve.

3 - Liquid level is more accurate without water loss, ensuring the quality of filling.

4 - Capping heads use magnetic torque device, ensuring the capping effect and protect the bottle cap.

5 - Using frequency conversion motor of German SEW, can be more convenient to adjust the capacity.

6 - Controlling system has the liquid level control function, lack of cap detection alarm function, automatic alarm for card bottles function etc.

7 - Using advanced touch screen control, can realize human-machine conservation.

Tecnical paratemers - - - - Model | YBQ24-24-8 | Washing head | 24 | Filling head | 24 | Capping head | 8 | Production capacity | 13500bph 200ml 12000bph 500ml 4200bph 1500ml | Air source pressure | 0.5-0.6MPa | Rinsing water pressure | 0.15-0.2 MPa | Bottle height | 150-340MM | Bottle diameter | 50-110MM | Rinsing water consumption | 1.2T/H | Filling way | Micro-Negative Filling | Power | 3ph, 380V/50Hz, 3KW | Overall size | 2880*2180*2450 (L*W*H) mm | Weight | 5500Kg | - - - - Service: After-sales service: We guarantee the quality of the main parts within 18 months.

If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you.

After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site.

Whenever you have technical question in using it, we will freely do our best to support you.

Guarantee of quality : The Manufacturer shall guarantee the goods are made of Manufacturers best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this Contract.

Quality guarantee period is within 12 months from B/L date.

The Manufacturer would repair the contracted machines free of charge during the quality guarantee period.

If the break-down can be due to the improper use or other reasons by the Buyer, the Manufacturer will collect repair parts cost.

Installation: The seller would dispatch his engineers to instruct the installation.

Cost would be bear on buyers side (round way flight tickets, accommodation fees in buyer country).
