13km H Counterbalance Forklift Truck 80v 450ah Low Noise Energy Saving - China

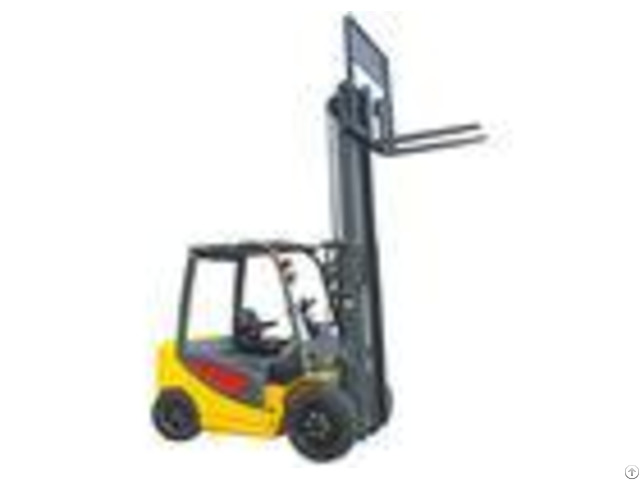

Counterbalanced 4 wheel electric forklift truck lifting height from 3 to 6m with Krupp mast from Germany Advantages: High stability and safety: # Cab design by SIP point, conforms to EN-ISO 5353, ensures compartment with great comfort and fatigue-free operating.

# Multifunction LCD digital display with digital service hour metre, battery discharge indicator, travel records, error code and warning displays.

Provide fast and accurate monitoring truck status.

# Mast cylinder lowering with buffering system: shock absorber steering axle with low noise.

All of seal kits imported from Japan (NOK), transmission and working system have low noise.

# With regenerative brake in reversing mode and regular brake pedal use, truck can be braked after foot leaving the pedal, reduce operator efforts and improve the brake life.

# The optional of third safety pedal to reduce the driving speed while stacking and steering application.

- - - - SPECIFICATIONS | Model | | FB35 | Power | | electric | Operation type | | seat | Load capacity | kg | 3500 | Load center distance | mm | 500 | Load distance, centre of drive axle to fork | mm | 498 | Wheelbase | mm | 1700 | Axle loading, laden front/rear | kg | 7084/966 | Axle loading, unladen front/rear | kg | 1820/2730 | Tyres type | | pneumatic/solid | Tyre size, front | mm | 710*220/695*218 | Tyre size, rear | mm | 590*175/577*162 | Tilt of mast/fork carriage forward/backward | Grad | 6-12 | Height, mast lowered | mm | 2045 | Max.

lifting height | mm | 3000-6000 | Height, mast extended | mm | 4250-7250 | Height of overhead guard(cabin) | mm | 2095 | Seat height/stand height | mm | 1050 | Overall length | mm | 3655 | Length to face of forks | mm | 2585 | Overall width | mm | 1205 | Fork dimensions | mm | 45/130/1070 | Fork carriage width | mm | 1200 | Ground clearance, laden, below mast | mm | 135 | Ground clearance, centre of wheelbase | mm | 150 | Aisle width for pallets 1000*1200 crossways | mm | 3950 | Aisle width for pallets 800*1200 lengthways | mm | 3750 | Turning radius | mm | 2350 | Travel speed, laden/unladen | km/h | 0-13 | Lift speed, laden/unladen | mm/s | 220 | Lowering speed, laden/unladen | mm/s | 600 | Max.

drawbar pull, laden/unladen | N | 15650 | Max.

gradeability, laden/unladen | % | 12/15 | Acceleration time, laden/unladen | s | 0-3 | Battery | V/Ah | 80/450 | Type of drive control | | DC/AC | Operating pressure for attachments | Mpa | 17 | Sound level at the driver's ear acc.

to DIN 12053 | dB(A) | 65.2 | Service weight | kg | 4550 | - - - - Multifunction LCD digital display DC double electric controller New front cowl offers large foot space Large battery capacity with lock bolts provides large open space allowing operator easy to maintain Remark: The data is based on the lifting height 3000mm; lifting height from 3000mm to 6000mm are available; Electric controller selection: ZAPI, DMC, CURTIS.
