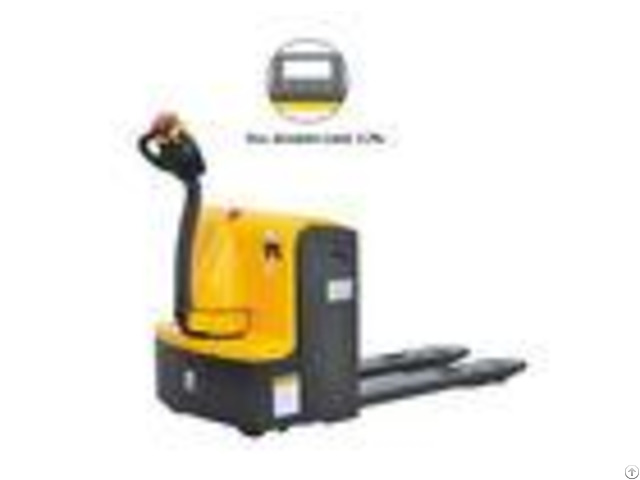

2000kg Capacity Motorised Pallet Truck Reliable Design With Electronic Scale - China

2000kg capacity electric pallet truck with electronic scale Quick details: Model: Electric pallet truck with scale CBD20KC Capacity: 2000kg Lowered fork height: 82mm Max.

Lifting height: 202mm Fork dimensions: 54/186/1100(11 50/1220)mm Max.

deviation (rate): 2 Battery: 24V210AH Service weight: 720kg Advantages: # Compact, flexible, easy to operate, safe for operator.

# Good passing performance, max.

gradeability 8/20%.

# Floating driving wheel, shock proof, stable.

# The balance wheel is easy to disassemble and easy to maintain.

# The driving motor is AC motor, no carbon brush, no maintenance, and greatly prolongs the service life.

# Side way battery which is easy to change, make the electric pallet truck can do non-stop working.

# The connecting rod is different from the traditional connecting rod type, it is never bent and has adjustable length.

# Double guide wheel, convenient to go in and out the pallets.

# The design of the cover is reasonable and reliable, and the disassembly is convenient, so that the maintenance of the electrical parts is very easy.

# The integration of electrical equipment layout, neat lines, clear, easy maintenance, electrical system reliable, shockproof.

# With the world famous brand weighing display instrument, the instrument has shockproof, waterproof function, with high reliability.

The electric pallet truck is equipped with 8 weighing sensors, the performance is reliable, weighing accuracy is high.

# Can choose printer as an option.

2T Electric pallet truck with scale - - - - SPECIFICATIONS OF ELECTRIC PALLET TRUCK WITH SCALE | Model | | CBD20KC | Battery type | | 1 set side way battery | Load capacity/rated load | kg | 2000 | Load center distance | mm | 600 | Load distance, centre of drive axle to fork | mm | 815/865/935 | Tread | mm | 1229/1279/1349 | Axle load, full capacity, front/rear | kg | 1240/1450 | Axle load, unload, front/rear | kg | 540/150 | Tyre size, front | mm | 250*70 | Tyre size, rear | mm | 82*126 | Additional wheels (dimensions) | mm | 127*57 | Max.

lifting height | mm | 202 | Height of tiller in drive position min.

/max.

| mm | 780/1230 | Fork height, lowered | mm | 82 | Overall length | mm | 1673/1723/1793 | Length to face of forks | mm | 573 | Overall width | mm | 775 | Fork dimensions | mm | 54/186/1100(1150/1220) | Width overall forks | mm | 556/656/691 | Aisle width for pallets 1000*1200 crossways | mm | 2033/2083/2153 | Aisle width for pallets 800*1200 lengthways | mm | 2133/2133/2153 | Turning radius | mm | 1400/1450/1520 | Travel speed, laden/unladen | km/h | 5.5/5.6 | Lift speed, laden/unladen | m/s | 0.04/0.05 | Lower speed, laden/unladen | m/s | 0.06/0.05 | Max.

gradeability, laden/unladen | % | 8/20 | Service brake | | Electromagnetic brake | Max.

deviation (rate) | | 2 | Dive motor power | kw | 1.2 | Lift motor power | kw | 1.2 | Battery | V/Ah | 24/210 | Service weight | kg | 720 | - - - -
