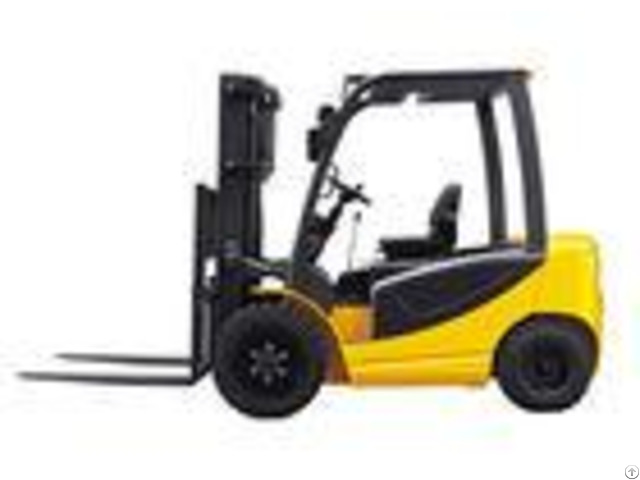

Ac Dc Type Electric Forklift Truck 2000kg With Full Free Lifting 3280kg Service Weight - China
price: check with company for price
AC or DC type 2000kg electric forklift with side shift and full free lifting Quick Details: Model: electric forklift truck FB20 Capacity: 2000kg Lift height: 3000-6000mm Aisle width for pallets 1000*1200 crossways: 3500mm Aisle width for pallets 800*1200 lengthways: 3300mm Turning radius: 1900mm Travel speed: 13.5km/h Battery: 48V450AH Advantages: # Electric forklift, lifting height from 3 meters to 6 meters.
# Forks can be tilted forward 6 degree or backward 12 degree.
# Krupp mast from Germany.
# shock absorbing drive axle.
# Multifunctional instrument panel, easy to check the fault.
# Regenerative braking extends battery life and brake pad life.
# The steps, the handle, the position of the steering wheel, the position of the seat, all kinds of switches, levers and instruments are in accordance with the principles of ergonomics.
# Option: (1) Cold storage connector.
(2) side shifter.
(3) full free lifting.
Cold storage electric forklift with full double AC controller is also available.
Suitable for application in cold stores between -30 ~ 40, the suitable setting will be carried out to the truck such as exposing components with water proof.
- - - - SPECIFICATIONS OF 2000KG ELECTRIC FORKLIFT TRUCK | Model | | FB20 | Power | | electric | Operation type | | seat | Load capacity | kg | 2000 | Load center distance | mm | 500 | Lift height | mm | 3000-6000 | Load distance, centre of drive axle to fork | mm | 395 | Wheelbase | mm | 1380 | Axle loading, laden front/rear | kg | 4647/633 | Axle loading, unladen front/rear | kg | 1312/1968 | Tyres type | | pneumatic/solid | Tyre size, front | mm | 590*179/577*162 | Tyre size, rear | mm | 470*137/461*127 | Tread, front | mm | 890 | Tread, rear | mm | 920 | Tilt of mast/fork carriage forward/backward | Grad | 6-12 | Height, mast lowered | mm | 2015-2610 | Free lift | mm | 0 | Height, mast extended | mm | 4067-7067 | Height of overhead guard(cabin) | mm | 2065 | Seat height/stand height | mm | 1043 | Overall length | mm | 3205 | Length to face of forks | mm | 2135 | Overall width | mm | 1100 | Fork dimensions | mm | 35/100/1070 | Fork carriage width | mm | 1088 | Ground clearance, laden, below mast | mm | 105 | Ground clearance, centre of wheelbase | mm | 115 | Aisle width for pallets 1000*1200 crossways | mm | 3500 | Aisle width for pallets 800*1200 lengthways | mm | 3300 | Turning radius | mm | 1900 | Internal turning radius | mm | 435 | Travel speed, laden/unladen | km/h | 0-13.5 | Lift speed, laden/unladen | mm/s | 270 | Lowering speed, laden/unladen | mm/s | 600 | Max.
drawbar pull, laden/unladen | N | 12880 | Max.
gradeability, laden/unladen | % | 15/20 | Acceleration time, laden/unladen | s | 0-3 | Battery | V/Ah | 48/450 | Type of drive control | | DC/AC | Operating pressure for attachments | Mpa | 17 | Sound level at the driver's ear acc.
to DIN 12053 | dB(A) | 63 | Service weight | kg | 3280 | - - - - Delivery of electric forklift:
Company Contact:
- Phone: 86-21-51872729
- Address: No. 7001, Zhongchun Road, Minhang District, Shanghai, P.R.China, Shanghai , Shanghai , China
- Email:
Published date: January 9, 2018
- Business Description: 13 years has been adhering to the customer demand as the core, quality, integrity-based business philosophy, adhere to the pre-sale, sale, customer service three service tenet, provide customers with high-quality, safe and efficient whole logistics handling equipment.
