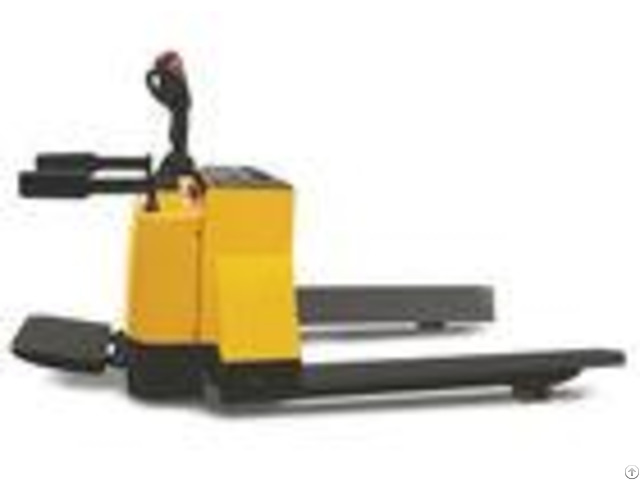

Ac Drive Electric Reel Pallet Truck 2000kg With Steering System Low Noise - China

AC 2000kg reel electric pallet truck with electric steering system Quick details: Model: electric reel pallet truck QBA20Z Capacity: 2000kg Fork height, lowered: 35mm Max.

lifting height: 155mm Fork dimensions: 55/185/1150mm Turning radius: 1720mm Travel speed, laden/unladen: 6km/h Service weight: 700kg Advantages: # AC drive system gives precise control, longer battery life.

# Aluminum cover, good heat dissipation for longer service life.

# The latest AC controller, reliable quality, excellent performance, with regenerative braking.

# Top-class hydraulic, low noise, low vibration, good sealing to ensure smooth and reliable decline.

# Precision electronic limit switches.

# Electric pallet truck circuit lines in nylon casing, wiring clean and corrosio, oil &abrasion resistant.

# Advanced Robot welding ensure high strength, good finish, no bubble in the welding.

# AC drive motor, no carbon brushes, reducing maintenance costs.

Vertical drive motor make the inspection and repair more convenient, which performance much better than the transverse motor.

# The design of integrated micro-switches, easy for replacement .

# Cover easy to open, convenient to add distilled water or electrolyte of the battery.

# Controller self-diagnosis system makes troubleshoothing easier.

# Emergency reverse switch.

# Emergency power-off disconnect.

# Foldable pedal, skid-proof, shock absorption, reducing the operator's fatigue.

Unique fork design specifically for handling reel goods, which can effectively prevent the cargo from rolling.

Easy to use, save time and effort, is the ideal tool for moving heavy equipment.

- - - - SPECIFICATIONS OF ELECTRIC REEL PALLET TRUCK | Model | | QBA20Z | Drive type | | electric | Operate type | | standing | Load capacity | kg | 2000 | Load center distance | mm | 600 | Load distance, centre of drive axle to fork | mm | 800 | Axle loading, laden front/rear | kg | 1640/1080 | Axle loading, unladen front/rear | kg | 160/560 | Tyres | | Polyurethane | Tyre size, front | mm | 250*70 | Tyre size, rear | mm | 80*80 | Additional wheels (dimensions) | mm | 114*50 | Max.

lifting height | mm | 155 | Fork height lowered | mm | 35 | Overall length | mm | 1890 | Overall width | mm | 780 | Fork dimensions | mm | 55/185/1150 | Width overall forks | mm | 550/685 | Ground clearance, center of wheelbase | mm | 30 | Aisle width for pallets 1000*1200 crossways | mm | 2135/2185/2255 | Aisle width for pallets 800*1200 lengthways | mm | 1700/1750/1820 | Turning radius | mm | 1720 | Travel speed, laden/unladen | km/h | 6 | Lift speed, laden/unladen | m/s | 0.06 | Lower speed, laden/unladen | m/s | 0.05 | Max.

gradeability, laden/unladen | % | 8/10 | Service brake | | Electromagnetic brake | Drive motor rating | kw | 1.5 | Lift motor rating | kw | 2.0 | Service weight | kg | 700 | - - - -
