Ac Function Walkie Electric Pallet Stacker With Small Turning Radius Dustproof - China

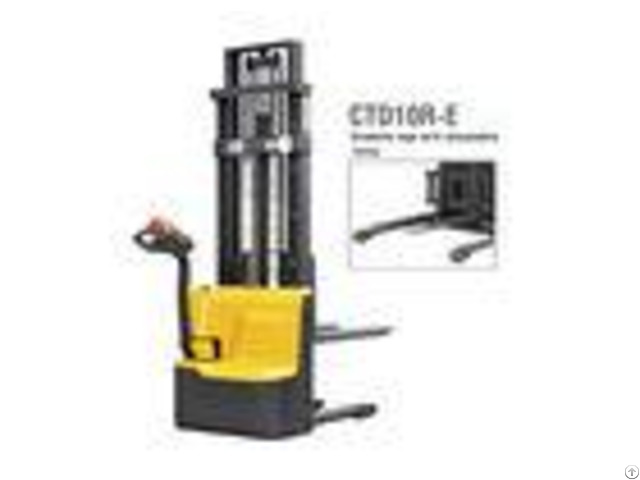

Walkie type 1000/1200kg electric pallet stacker 1600-3000mm with small turning radius HOT SELLING MODEL The super light Electric Walkie Stacker with small turning radius which is widely used in small warehouse and super market.

Suit for low level stacking and short distance transport.

AC Function Quick Details: Description: electric pallet stacker Capacity: 1000/1200kg Max.

lifting height: 1600/2500/3000mm Turning radius: 1365mm Travel speed, laden/unladen: 5/6km/h Lift speed, laden/unladen: 0.12/0.22m/ s Advantages: # Electric pallet stacker easy work on 5% ramp.

# Small and flexible, good maneuverability.

# Able to work freely and efficiently in narrow spaces.

# The handle is provided with a turtle speed switch, and the handle has an upright walking function.

# Equipped with built-in charger, easy to charge.

# With adjustable balance wheel, the stacker runs smoothly and has no sway at all.

# Good shock proof effect, the balance wheel assembly is integrally removable, convenient for maintenance.

# AC vertical drive wheel.

# Dustproof and water proof motor.

Option: # Straddle legs with adjustable forks.

- - - - SPECIFICATIONS | Model | | CDDR-E | Load capacity | kg | 1000/1200 | Load center distance | mm | 600 | Load distance, centre of drive axle to fork | mm | 741 | Height, lowered | mm | 90 | Tyre size, front | mm | 195*70 | Tyre size, rear | mm | 80*70 | Additional wheels (dimensions) | mm | 150*60 | Height, mast lowered | mm | 2090/1840/2090 | Max.

lifting height | mm | 1600/2500/3000 | Height, mast extended | mm | 2090/3060/3560 | Height of tiller in drive position min.

/max.

| mm | 670/1300 | Overall length | mm | 1748(1668) | Length to face of forks | mm | 598 | Overall width | mm | 800 | Fork dimensions | mm | 60/170/1150(1070) | Width overall forks | mm | 570/695 | Ground clearance, centre of wheelbase | mm | 26 | Aisle width for pallets 1000*1200 crossways | mm | 2218 | Aisle width for pallets 800*1200 lengthways | mm | 2173 | Turning radius | mm | 1365 | Travel speed, laden/unladen | km/h | 5/6 | Lift speed, laden/unladen | m/s | 0.12/0.22 | Lowering speed, laden/unladen | m/s | 0.14/0.14 | Battery | V/Ah | 24/100 | Service weight | kg | 550/670 | - - - -
