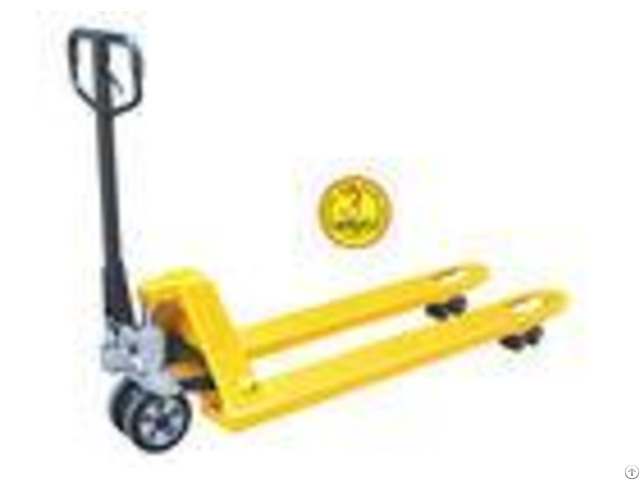

Complete Pump Design Hand Pallet Truck Pu Wheel With Capacity 3000kgs - China
price: check with company for price
Complete pump design hand pallet truck with capacity 2500-3000kgs Innovative design, comprehensive testing and highest quality! # Most standard and popular model with capacity 2500-3000kgs.
# With Copping Supporting NOG & strengthening ribbing under top triangle cover.
# Complete pump design with reliable leak-proof pump eliminating maintenance and extending the service time.
# 210 steering arc, and small turning radius.
# Fork lowering speed is controllable, operated by hand control and foot pedal.
# Entry/exit roller, more freely travel.
# Equipped with over-load valve, with long service time.
# 3 position hand control - Raise, Lower, Neutral.
# 12 lubrication grease nipples on all movable parts for easy maintenance.
# Adjustable pump cap ensures a long service life.
# Ergonomic large rubber handle with three control lever.
Option: # # Nylon wheel, polyurethane wheel, rubber wheel, single fork roller or tandem fork rollers.
# Fork length: 800mm, 900mm, 1000mm.
# Foot pedal release.
# Pump color: black painting, silver painting.
- - - - SPECIFICATIONS | Model | | BF | Load capacity | kg | 2500/3000 | Fork height, lowered | mm | 85/75 | Tyre size, front | mm | 200*50/180*50 | Tyre size, rear | mm | 80*70/74*70 | Max.
lifting height | mm | 200/190 | Total height | mm | 1224/1214 | Overall length | mm | 1483/1533/1603 | Fork length | mm | 1100/1150/1220 | Width overall forks | mm | 520/550/685 | Ground clearance, centre of wheelbase | mm | 40/30 | Aisle width for pallets 1000*1200 crossways | mm | 1683/1733/1803 | Aisle width for pallets 800*1200 lengthways | mm | 1783/1783/1803 | Turning radius | mm | 1216/1266/1336 | Service weight | kg | 65-75 | - - - - Adjustable pump cap Adjustable straight tappet Entry roller for easy operation Option: fully rubber wrapped handle Innovative wheel frame Over 5, 000, 000 units sold Remark: Special size fork width and length can be made according to customer's requirement.
Company Contact:
- Phone: 86-21-51872729
- Address: No. 7001, Zhongchun Road, Minhang District, Shanghai, P.R.China, Shanghai , Shanghai , China
- Email:
Published date: January 9, 2018
- Business Description: 13 years has been adhering to the customer demand as the core, quality, integrity-based business philosophy, adhere to the pre-sale, sale, customer service three service tenet, provide customers with high-quality, safe and efficient whole logistics handling equipment.
