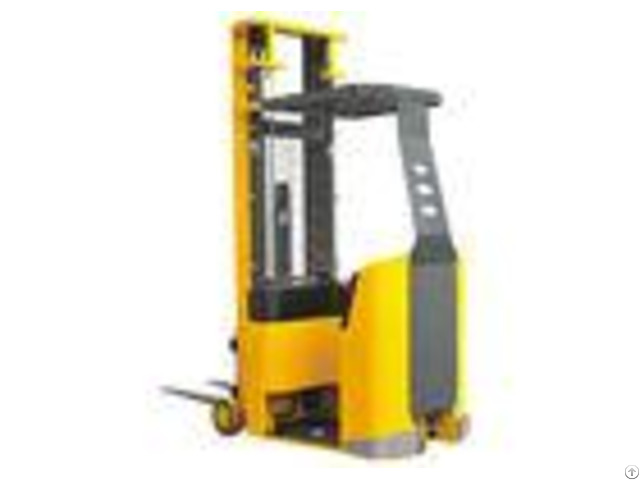

Counterbalanced Narrow Aisle Truck Capacity 1000kg Small Turning Radius - China

Small turning radius counterbalanced narrow aisle forklift truck capacity 1000kg easy and smart to operate Quick Details: Product name: Narrow aisle forklift truck CPD10A Capacity: 1000lg Lifting height: 3000mm Free lift: 1600mm Aisle width for pallets 1000*1200 crossways: 2700mm Aisle width for pallets 800*1200 lengthways: 2810mm Turning radius: 1200mm Battery: 24V360AH Advantages: # Advanced AC control system with MOSFET delivers smooth driving speed control for precise.

# Small turning radius, easy and smart to operate.

# Lean-on compartment reducing operator's fatigue.

# With regenerative braking system for driving and electronic braking system for parking.

# Low Battery Protection setting prolongs service life.

# With deadman switch on floor to cut off the power when operator leave the foot from cab.

# Lifting cylinders on the both of mast provides best visibility.

# The optional of Full Hydraulic Steering System and EPS offers follow advantages: - Steering wheel automatic reset.

- Traveling speed automatically slow down when steering.

- Show the turning angles on the display.

- - - - SPECIFICATIONS | Model | | CPD10A | Power | | battery | Load capacity | kg | 1000 | Load center distance | mm | 600 | Load distance, centre of drive axle to fork | mm | 140 | Tyre size, front | mm | 250*80 | Tyre size, rear | mm | 280*100 | Height, mast lowered | mm | 2155 | Free lift | mm | 1600 | Max.

lifting height | mm | 3000 | Height, mast extended | mm | 3565 | Height of overhead guard(cabin) | mm | 2090 | Height of tiller in drive position min.

/max.

| mm | 1000 | Overall length | mm | 2210 | Overall width | mm | 890 | Fork dimensions | mm | 35/100/950 | Fork carriage width | mm | 560 | Ground clearance, centre of wheelbase | mm | 50 | Aisle width for pallets 1000*1200 crossways | mm | 2700 | Aisle width for pallets 800*1200 lengthways | mm | 2810 | Turning radius | mm | 1200 | Travel speed, laden/unladen | km/h | 5.8/6 | Lift speed, laden/unladen | m/s | 0.11/0.15 | Lowering speed, laden/unladen | m/s | 0.15/0.11 | Battery | V/Ah | 24/360 | Service weight | kg | 2120 | - - - - AC EPS
