Counterbalanced Pallet Stacker Forklift With Ac Drive System Legless Design - China

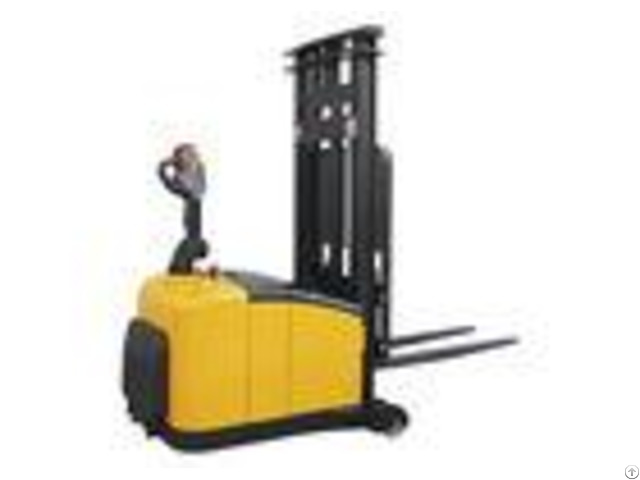

1200kg 5500mm counterbalanced electric pallet stacker with AC drive system Quick Details: Description: counterbalanced electric pallet stacker QDA12B Capacity: 1200kg Max.

lifting height: 5500mm Aisle width for pallets 1000*1200 crossways: 2610mm Aisle width for pallets 800*1200 lengthways: 2740mm Travel speed, laden/unladen: 4km/h Lifting speed, laden/unladen: 0.09/0.12m/s Lowering speed, laden/unladen: 0.12/0.09m/s Advantages: # Legless design, small turning radius and wide range of application.

# With the main block design, a variety of front shelves can be matched to meet the demand of various tonnage.

# The upper cover of the electric pallet stacker body is designed with buckle, can be disassembled quickly and easily.

# Full free lifting saves operating space.

# Speed conversion system: when carrying at high level, the walking speed will become slower, can achieve the effect of security protection for operators.

# Metal cover.

Option: # Electronic steering system.

# Imported ZF gearbox.

# The handle has the function of fast and slow shift, and the lifting speed is controllable.

- - - - SPECIFICATIONS | Model | | QDA12B | Driving type | | Electric | Operating | | Walking/Standing | Rated capacity | kg | 1200 | Load center distance | mm | 600 | Wheelbase | mm | 1150 | Wheels | | polyurethane wheel | Wheel dimension, front | mm | 250*75 | Wheel dimension, rear | mm | 150*102 | Thread, rear | mm | 878 | Max.

lifting height | mm | 5500 | Free lift height | mm | 300 | Height, fork lowered | mm | 45 | Ground clearance | mm | 80 | Extended mast height | mm | 6650 | Lowered mast height | mm | 2420 | Overall length | mm | 2680 | Overall width | mm | 1020 | Fork dimensions | mm | 35*100*1070 | Aisle width for pallets 1000*1200 crosswise | mm | 2610 | Aisle width for pallets 800*1200 lengthwise | mm | 2740 | Turning radius | mm | 1390 | Travel speed, laden/unladen | km/h | 4-4 | Lift speed, laden/unladen | m/s | 0.09/0.12 | Lowering speed, laden/unladen | m/s | 0.12/0.09 | Max.

Gradient, load/unload | % | 5/10 | Travel brake | | electric regenerative braking | Driving motor power | kw | 1.5 | Lifting motor power | kw | 3 | Turing mode | | Electronic steering | Battery | V/Ah | 24/210 | Service weight | kg | 2200 | - - - -
