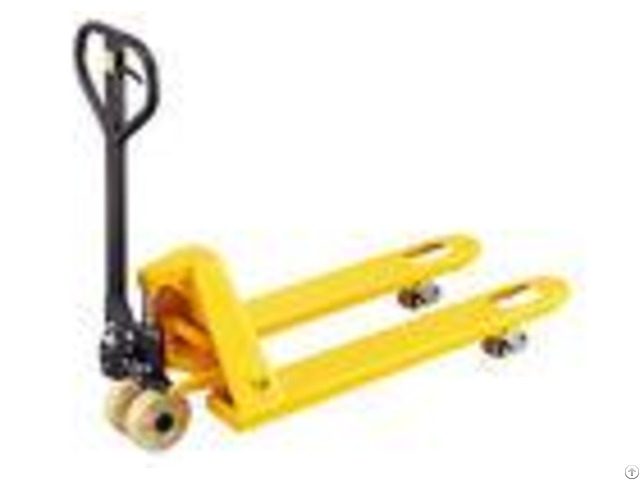

Customized Fork 2 Ton Hand Pallet Truck With Nylon Wheels Corrosion Resistant - China

Capacity 2000kg hand pallet truck hand pallet jack with PU or Nylon wheels Quick Details Model: economy hand pallet truck Capacity: 2000kg Lowered fork height: 75mm Total lift height: 190mm Fork dimension: 520/550/680*1150/1220mm Economic design hand pallet truck: # Standard epoxy powder coat finish which is resistant to chips and normal corrosion.

# Exceptionally strong but light weight steel construction, service weight is only 55kgs.

# With welded joints and reinforced fork tips for most durability in the toughest applications.

# 3 position hand control - Raise, Lower, Neutral.

# Excellent turning angle of 190 degrees facilities.

# Number of pump strokes 12 times, lift height per stroke 11mm.

# Reliable oil leak-proof hydraulic system.

Option: # # PU wheels, Nylon wheels, single or double wheels.

# Customized fork length.

- - - - SPECIFICATIONS | Model | | DB | Load capacity | kg | 2000 | Lowered fork height | mm | 75 | Steering wheel | mm | 160 | Fork wheel single | mm | 70*80 | Fork wheel double | mm | 70*60 | Max.

lifting height | mm | 190 | Total height | mm | 1176.5 | Overall length | mm | 1520/1590 | Fork length | mm | 1150/1220 | Width overall forks | mm | 520/550/680 | Ground clearance, centre of wheelbase | mm | 22 | Aisle width for pallets 1000*1200 crossways | mm | 1720/1790 | Aisle width for pallets 800*1200 lengthways | mm | 1770/1790 | Turning radius | mm | 1265/1335 | Service weight | kg | 55-60 | - - - -
