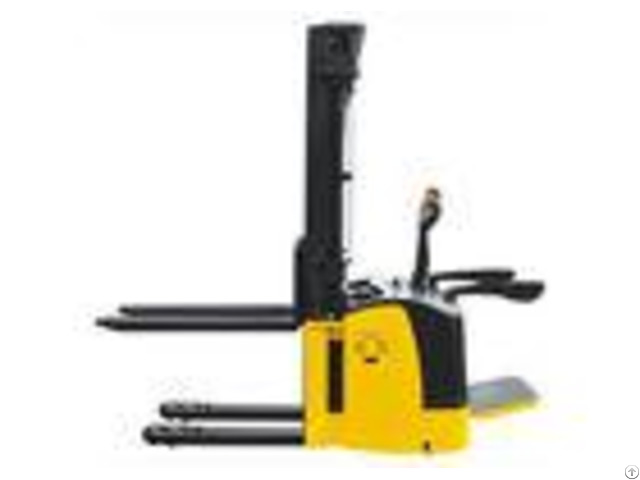

Double Design Electric Pallet Truck Stacker With Initial Lift High Performance - China

1500kg double pallet design electric pallet stacker with initial lift Quick Details: Description: full electric pallet stacker with initial lift

Capacity: 2000kg

Max.

lifting height: 3500mm

Free lift: 1800mm

Initial lift: 120mm

Aisle width for pallets 800*1200 lengthways: 2575mm

Travel speed, laden/unladen: 6.2/6.5km/h

Lifting speed, laden/unladen: 0.11/0.14m/s

Lowering speed, laden/unladen: 0.12/0.12m/s

Battery: 24V240AH Advantages:

# The 4-points support structure with side tiller, low center of gravity design with excellent stability.

# Double pallet design: two pallet handled at one time, initial lift of load leg increases ground clearance to negotiate easily ramps, dock levelers and bridging plates.

# Vertical driving wheel, offer small turning radius, dustproof waterproof motor, easy for maintenance.

# AC motor without carbon brush, good ramp braking performance, efficient electromagnetic parking brake.

# Free lifting mast with two side cylinders offers wide view for operators.

Option:

# Walking type.

This heavy stacker includes two models with a rated load capacity of 1500kgs.

Specially designed for intensive stocking operations at medium height wareghouse.

2000kgs load can be transported using the initial lift function.

- - - -

SPECIFICATIONS | Model | | CDDK15S | Drive type | | Electric | Operate type | | Standing | Load capacity | kg | 1500 | Load center distance | mm | 600 | Fork overhang | mm | 768 | Wheelbase | mm | 1510 | Axle load, full loaden front/rear | kg | 899/1141 | Axle load, unloaden front/rear | kg | 729/291 | Wheels | | PU | Wheel size, front | mm | 250*70 | Wheel size, rear | mm | 80*70 | Additional wheels (dimensions) | mm | 150*47 | Front wheel tread | mm | 540 | Rear wheel tread | mm | 390 | Height, mast lowered | mm | 2257 | Free lift | mm | 1800 | Max.

lifting height | mm | 3500 | Initial lift | mm | 120 | Overall length | mm | 2058 | Length to face of forks | mm | 988 | Overall width | mm | 850 | Fork dimensions | mm | 60/180/1070(1150) | Width overall forks | mm | 570/650 | Aisle width for pallets 1000*1200 crossways | mm | 2631 | Aisle width for pallets 800*1200 lengthways | mm | 2575 | Turning radius | mm | 1786 | Travel speed, laden/unladen | km/h | 6.2/6.5 | Lift speed, laden/unladen | m/s | 0.11/0.14 | Lowering speed, laden/unladen | m/s | 0.12/0.12 | Max.

gradient, laden/unladen | % | 8/15 | Service brake | | Electromagnetic braking | Drive motor power | kw | 1.5 | Lift motor power | kw | 2.2 | Battery | V/Ah | 24/240 | Service weight | kg | 1260 | - - - -
