Durable Ac Control Walkie Pallet Jack Low Profile Chassis Electric Pump Truck - China

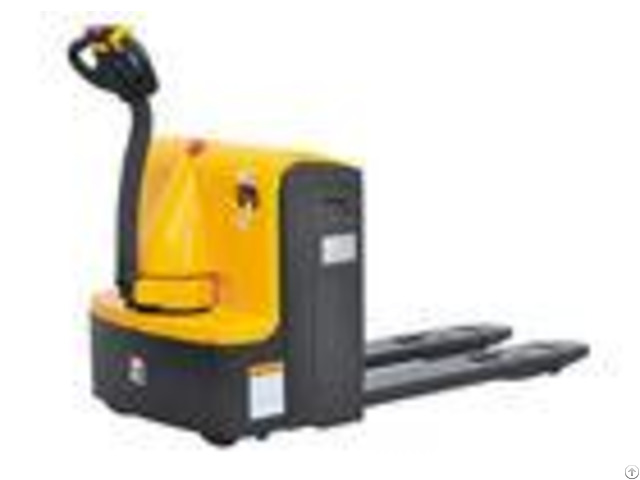

Super light walkie type electric pallet truck 2000kg with low profile chassis Quick details: Model: Electric pallet truck walking type CBD20KD Capacity: 2000kg, 4400lbs Lowered fork height: 82mm, 3.2inch Max.

Lifting height: 202mm, 8inch Fork dimensions: 54/180/1220mm, 2.1/7/48inch Turning radius: 1550mm, 61inch Travel speed, laden/unladen: 5.5/5.6km/h Battery: 24V200AH Advantages: Safe and efficient # Advanced AC control system eliminates the motor brushes and directional contactors, which makes the minimal maintenance requirements.

# Intelligentized regenerative brake system: increase overall electric pallet truck performance by decreasing battery charge intervals.

# Beautiful and compact electric pallet truck body design, walking operation with flexible, light, good visual field and safe operation.

# Strong power, good climbing performance, strong overload capacity.

# The rear bottom of the special slope shape, so that the electric pallet truck has a good pass ability.

# The fork head is designed with a double guide wheel, which makes the pallets easy to access.

# Side-way battery with roll-out system is very convenient to replace batteries.

# Emergency reversing device.

# Built-in pressure relief valve protects the trucks from overloading.

# Long handle tube supports flexible and laborsaving operation.

# Emergency power disconnect.

# Low speed switch in the handle.

# Stepless speed control.

Structural optimization design # Both sides equipped with floating balance wheel, so that the electric pallet truck walking smoothly, has a good shock absorber effect.

# Min.

fork height lowered is 82mm, both European and American pallet can be used.

# The electric pallet truck is equipped with high performance multi-function instrument, with power display, cumulative working time display, even in very harsh environment, the instrument also has higher reliability.

# The connecting rod will never bend and the length of the connecting rod can be easily adjusted.

# Water-proof and dust proof vertical driving wheel offers small turning radius.

# The riser axle located at the highest point of forks, protects riser axles from constant contact by uneven floors.

Pull rod design against bending.

# Spring-loaded castors improve lateral stability on uneven floors and enhance electric pallet truck performance and service life.

# Formed heavy gauge steel for maximum strength forks.

Easy maintenance design # Low battery protection setting prolongs the battery life.

# The balance wheel assembly is removable, convenient for maintenance.

# The replacement and maintenance of the driving wheel is simple and convenient, the drive motor adopts AC motor, maintenance free and long service life.

# The battery cover can be conveniently opened, can easily remove the battery, the water maintenance of it is simple and convenient.

# CANbus technology reduces wiring complexity.

# All pivot point have grease fitting and serviceable bushing, reducing component-wearing.

The super light walkie type with small turning radius and low profile chassis, widely used in narrow space like supermarket and workshop for short and middle distance transport.

- - - - SPECIFICATIONS | Model | | CBD20KD | Battery type | | 1 set side way battery | Load capacity/rated load | kg/lbs | 2000/4400 | Load center distance | mm/inch | 600/23.6 | Load distance, centre of drive axle to fork | mm/inch | 815/865/935(32/34/36.8) | Fork height, lowered | mm/inch | 82/3.2 | Tyre size, front | mm/inch | 250*70/10*2.8 | Tyre size, rear | mm/inch | 82*126(98)/3.2*5(3.85) | Additional wheels (dimensions) | mm/inch | 127*57/5*2.2 | Max.

lifting height | mm/inch | 202/8 | Height of tiller in drive position min.

/max.

| mm/inch | 780/1230(30.7/48.4) | Overall length | mm/inch | 1655/1705/1775(65.2/67.1/ 69.1) | Length to face of forks | mm/inch | 555/21.9 | Overall width | mm/inch | 775/30.5 | Fork dimensions | mm/inch | 54*180*1100/1150/1220(2.1 *7*43/45/48) | Width overall forks | mm/inch | 520/550/650/685(20.5/22/2 6/27) | Aisle width for pallets 1000*1200 crossways | mm/inch | 2015/2065/2135(79/81/84) | Aisle width for pallets 800*1200 lengthways | mm/inch | 2115/2115/2135(83/83/84) | Turning radius | mm/inch | 1400/1450/1520(55/57/60) | Travel speed, laden/unladen | km/h | 5.5/5.6 | Battery | V/Ah | 24/210 | Service weight | kg/lbs | 620/1367 | - - - -
