Mini Type Electric Pallet Truck With Smallest Turning Radius High Efficiency - China

price: check with company for price

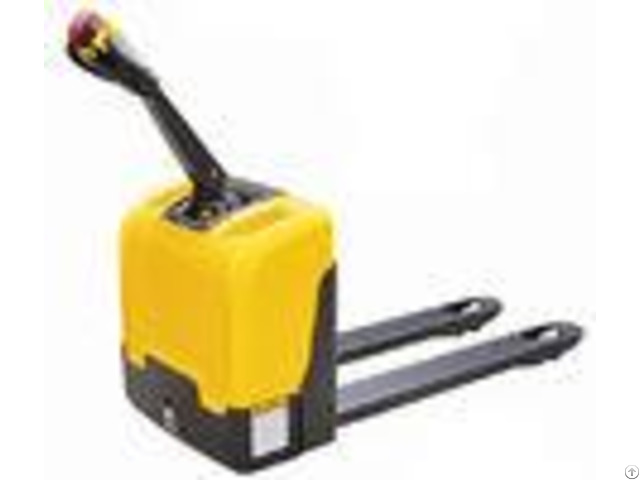

Mini type electric pallet truck 1500KG capacity with smallest turning radius Advantages: # with smallest turning radius 1320mm-1389mm.

# DC brushless motor with high electric efficiency, maintenance free.

# Full sealed battery free to maintain, big capacity 80AH fit for high-intensive use.

# Max.

speed limit button can release brake when handle upright, reduce turning space greatly.

# High travel speed is up to 5.3-5.8km/h, improve productive efficiency.

# Floating balance wheel supports automatic height-adjusting.

# Horizontal drive wheel provides convenient replacement.

Standard Features: # new type Tiller Head with Max.

speed limit button.

# Emergency stop & belly button.

# BDI and hour meter.

# Casters to balance stability.

# Sealed battery.

# Brushless Horizonal motor.

# Built-in Charger.

# Exist roller.

Option: # Outside charger.

# Fork width and length (size).

# Load backrest.

Super Light Max.

Compact Great Powerful The Mini type full electric pallet truck are with compact design and powerful motor, with small turning radius offers same outsize as manual pallet truck, widely used in narrow aisle workshop, super market and cargo containers.

- - - - SPECIFICATIONS | Model | | CBD15W | Load capacity | kg | 1500 | Fork height, lowered | mm | 85/75 | Tyre size, front | mm | 195*70 | Tyre size, rear | mm | 80*70/74*70 | Max.

lifting height | mm | 190/180 | Height of tiller in drive position min.

/max.

| mm | 950/1310 | Overall length | mm | 1525/1595 | Length to face of forks | mm | 375 | Overall width | mm | 685 | Fork dimensions | mm | 53/160/1150(1220) | Width overall forks | mm | 520/550/685 | Aisle width for pallets 1000*1200 crossways | mm | 1725/1795 | Aisle width for pallets 800*1200 lengthways | mm | 1775/1795 | Turning radius | mm | 1347/1415 | Travel speed, laden/unladen | km/h | 5.3/5.8 | Battery | V/Ah | 24/80 | Service weight | kg | 230 | - - - - AC Function


Company Contact:


  • Phone: 86-21-51872729

  • Address: No. 7001, Zhongchun Road, Minhang District, Shanghai, P.R.China, Shanghai , Shanghai , China

  • Email: Email


Published date: January 9, 2018

  • Business Description: 13 years has been adhering to the customer demand as the core, quality, integrity-based business philosophy, adhere to the pre-sale, sale, customer service three service tenet, provide customers with high-quality, safe and efficient whole logistics handling equipment.
