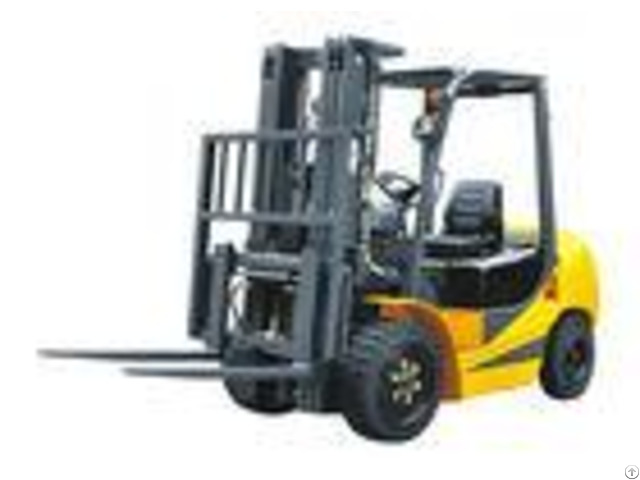

Pneumatic Tyres Four Wheel Forklift With Low Emission 6000mm Lifting Height - China

Different engine selection diesel powered forklift 3500kg with low emission Quick Details: Capacity: 3500kg Max.

lifting height: 3000-6000mm Tyres type: Pneumatic/solid Tilt of mast/fork carriage forward/backward: 6-12 Fork dimensions: 50/130/1070mm Engine: 490BPG/498BPG/4JG2/4TNE98 Wide view mast with best visibility.

Engine cover with gas-filled cylinders and sound absorbing material.

Advantages: Stability # Cab design by SIP point, conforms to EN-ISO 5353, ensures compartment with great comfortable and fatigue-free operating.

# Leak-free O-rings imported from Japan NOK face seal fittings reduce leaks.

# Drive axle and steering axle, transmission are with TCM technology, float type structure achieve a flexible connection between engine and frame, reduce vibrations greatly.

JAPAN SHIMADSU type hydraulic pump with low noise.

# The cylinder have dual safety system - with lowering safety valve and lowering limited valve.

Safety # Advanced multifunction LCD/digital display provides fast and accurate Monitoring truck status.

# The cylinder offers new design by dual safety system - with lowering safety valve and lowering limited valve.

# The electric F/R lever with neutral safety start system.

# An intelligent sensor and buffer monitoring system: with safety check valve to absorb the mast drop speed automatically to avoid crashing floor and damaging goods.

Remark: The data is based on the lifting height 3000mm; Lifting height from 3000mm to 6000mm are available.

- - - - SPECIFICATIONS | Model | | FD35 | Power | | Diesel | Operation type | | seat | Load capacity | kg | 3500 | Load center distance | mm | 500 | Load distance, centre of drive axle to fork | mm | 485 | Wheelbase | mm | 1700 | Axle loading, laden front/rear | kg | 7002/955 | Axle loading, unladen front/rear | kg | 1783/2674 | Tyres type | | pneumatic/solid | Tyre size, front | mm | 710*220/695*218 | Tyre size, rear | mm | 590*175/577*162 | Tilt of mast/fork carriage forward/backward | Grad | 6-12 | Height, mast lowered | mm | 2060-3139 | Max.

lifting height | mm | 3000-6000 | Height, mast extended | mm | 4250-7250 | Height of overhead guard(cabin) | mm | 2105 | Seat height/stand height | mm | 1064 | Overall length | mm | 3860 | Length to face of forks | mm | 2790 | Overall width | mm | 1225 | Fork dimensions | mm | 50/130/1070 | Fork carriage width | mm | 1200 | Ground clearance, laden, below mast | mm | 135 | Ground clearance, centre of wheelbase | mm | 150 | Aisle width for pallets 1000*1200 crossways | mm | 4000 | Aisle width for pallets 800*1200 lengthways | mm | 3800 | Turning radius | mm | 2400 | Travel speed, laden/unladen | km/h | 0-20 | Lift speed, laden/unladen | mm/s | 400 | Lowering speed, laden/unladen | mm/s | 600 | Max.

drawbar pull, laden/unladen | N | 21600 | Max.

gradeability, laden/unladen | % | 20/27 | Acceleration time, laden/unladen | s | 3/4 | Engine type | | K25/491 | Engine power | kw | 37.4/41 | Rated speed | R/Min | 2300/2500 | Type of drive control | | mechanical/hydraulic | Operating pressure for attachments | Mpa | 16.5 | Sound level at the driver's ear acc.

to DIN 12053 | dB(A) | 82 | Service weight | kg | 4460 | - - - -
