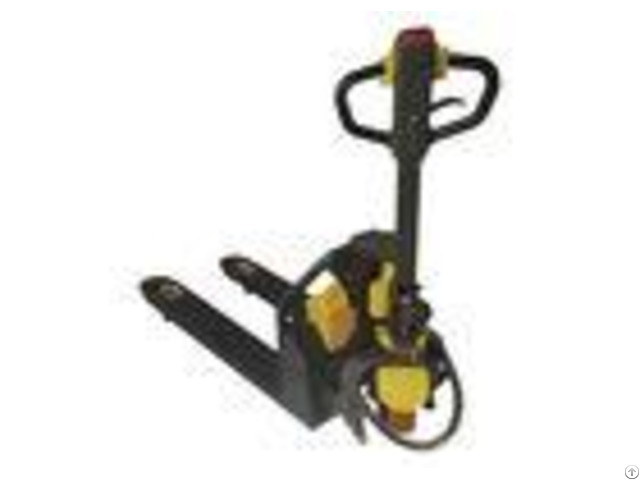

Portable Electric Pallet Truck 1200kg Compact Structure With Lithium Battery - China

Compact and portable 1200kg electric pallet truck with lithium battery Quick details: Model: electric pallet truck with lithium battery CBD12W Capacity: 1200kg Fork height, lowered: 80mm Max.

lifting height: 190mm Fork dimensions: 45/160/1150(1220)mm Turning radius: 1452/1522mm Travel speed, laden/unladen: 4/4.5km/h Battery: 48V20AH Advantages: # 48V large capacity maintenance-free lithium battery, long working time around 6 hours.

# The charging time only needs 3 hours.

# 10 seconds replacement of the battery (two groups exchanged battery can be used for 24 hours of continuous work).

# Brushless motor, maintemance-free, high efficiency.

# Stepless speed, smooth speed changing.

# Small and beautiful, flexible steering, which can successfully enter the narrow space, such as elevators, small super market.

Range of application: # Indoor use, light duty work.

# Warehouses freight handling.

# Retail outlets.

# Beverage distribution.

# Frozen food storage.

# Chemical handling and processing facilities.

Multi-function Control Handle incorporates butterfly-style thumb controls, emergency reverse button, horn button and key switch for ease of use.

Ergonomic Spring-loaded steering handle with comfort grip for reduced operator fatigue.

Long Tiller with Large Hand Grip for easy and comfortable hold, strain-free operation.

Plug-in Battery Design makes it easier to remove and change, no need additional tools or devices.

Integrated Rocker Arm The rocker arm is casted in single piece, intensifying the strength and structure.

Compact Vehicle Design Rugged and high-performing yet light weight body provides exceptional maneuverability in tight areas.

Less Wiring, Easy Service Mechanical and electronic components are easy to change and service.

Brushless Motor stepless speed control provides better and smoother speed changing.

brushless motor is easy for maintemance.

- - - - SPECIFICATIONS of ELECTRIC PALLET TRUCK WITH LITHIUM BATTERY | Model | | CBD12W | Load capacity | kg | 1200 | Load centre distance | mm | 600 | Fork height, lowered | mm | 80 | Tyre size, front | mm | 250 | Tyre size, rear | mm | 80 | Max.

lifting height | mm | 190 | Height of tiller in drive position min.

/max.

| mm | 635/1200 | Overall length | mm | 1651/1721 | Length to face of forks | mm | 501 | Overall width | mm | 550/680 | Fork dimensions | mm | 45/160/1150(1220) | Width overall forks | mm | 550/680 | Aisle width for pallets 1000*1200 crossways | mm | 1850/1920 | Aisle width for pallets 800*1200 lengthways | mm | 1900/1920 | Turning radius | mm | 1452/1522 | Travel speed, laden/unladen | km/h | 4/4.5 | Battery | V/Ah | 48/20 | Service weight | kg | 140 | - - - - IF product design award Reddot design award
