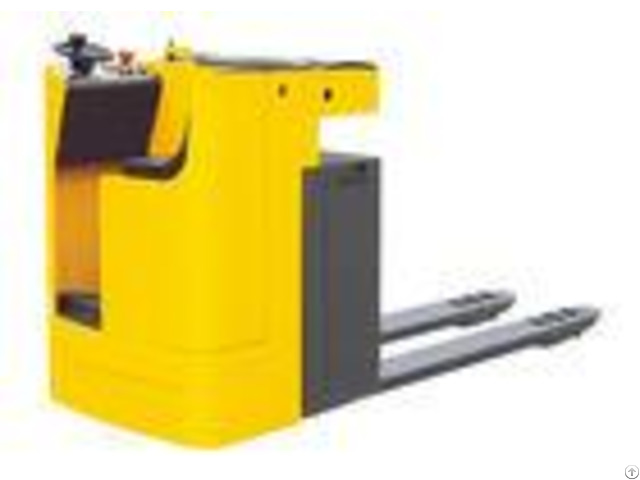

Seated Type Electric Pallet Truck 2 Ton Strong Power Good Looking With Eps System - China

Seated type electric pallet truck with 2000kg capacity and electric power steering system Quick details: Model: Seated type Electric Pallet Truck CBD20Z Capacity: 2000kg Lowered fork height: 82mm Max.

Lifting height: 202mm Aisle width for pallets, 1000*1200 crossways: 2115/2165/2235mm Aisle width for pallets, 800*1200 lengthways: 2215/2215/2235mm Battery: 24V270AH Service weight: 900kg Advantages: Safety and Productivity # Advanced AC control with reliable performance is easy to maintain.

# Speed frequency control makes good control performance.

# Electric power steering system (EPS).

# Intelligentized regenerative brake system combined with electromagnetic system allows safe and reliable brake and prolongs life time.

# Side battery with roll out system, convenient to handle.

# Connecting rod will not bend and deform at working, and the length can be adjust accurately and conveniently.

# The guide wheel on fork head makes convenient pallet work.

# High level configuration of motor power and battery capacity, max travel speed under laden arrives 7.5-7.8km/h, greatly improved work efficiency and reliability.

# With small turning radius and good looking.

# The key components is set compact and reasonable, which is convenient to maintenance.

# Proportional power assistant steering.

# Open structure design makes repair and maintenance convenient.

# With strong power and good throughput capacity, gradeability under unladen can reach 25% and arrive 10% under laden situation.

# Lift height of 202mm is better for pallets applicability.

Option: # 2000/2500kg capacity.

# Rapid and simple battery changing system.

Seated type electric pallet truck with 2000kg capacity - - - - SPECIFICATIONS OF SEATED TYPE ELECTRIC PALLET TRUCK | Model | | CBD20Z | Operate type | | seated | Load capacity | kg | 2000 | Load center distance | mm | 600 | Load distance, centre of drive axle to fork | mm | 800/850/920 | Height, lowered | mm | 82 | Tyre size, front | mm | 250*80 | Tyre size, rear | mm | 82*98 | Additional wheels (dimensions) | mm | 160*55 | Max.

lifting height | mm | 202 | Seat height/stand height | mm | 900 | Overall length | mm | 1900/1950/2020 | Length to face of forks | mm | 800 | Overall width | mm | 864 | Fork dimensions | mm | 54/180/1100(1150/1220) | Width overall forks | mm | 520/550/650/685 | Aisle width for pallets 1000*1200 crossways | mm | 2115/2165/2235 | Aisle width for pallets 800*1200 lengthways | mm | 2215/2215/2235 | Turning radius | mm | 1630/1680/1750 | Travel speed, laden/unladen | km/h | 7.5/8 | Battery | V/Ah | 24/270 | Service weight | kg | 900 | - - - -
