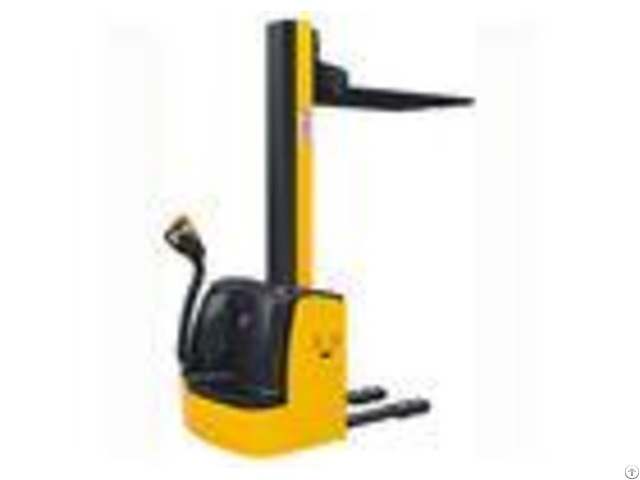

Single Column Walkie Electric Pallet Stacker 1 Ton With Wide View Mast - China

Single column walkie electric pallet stacker 1000kg with wide view mast Quick Details: Description: Single Column Walkie Electric Pallet Stacker Capacity: 1000kg Max.

lifting height: 1600/1950mm Aisle width for pallets 800*1200 lengthways: 2220mm Travel speed, laden/unladen: 5.3/5.6km/h Lifting speed, laden/unladen: 0.11/0.19m/s Lowering speed, laden/unladen: 0.16/0.11m/s Battery: 24V65AH Advantages: Safety and productivity # This single column electric pallet stacker is mainly suitable for flat ground operation, especially for floor and container operation.

# This single column electric pallet stacker adopts the most advanced permanent magnetic brushless drive motor, without carbon brush, maintenance free, good regenerative braking function and ramp suppression function.

Excellent driving control.

# The driving mechanism adopts a vertical structure driving unit; the whole driving unit has small turning radius, low running noise and convenient wheel replacement and maintenance.

# The internal structure is clean and orderly, easy to maintain and overhaul.

# Low center of gravity design, electric pallet stacker stability is good.

# With smaller turning radius.

# Single column frame design, wide view mast.

# It has shock absorber and noise reduction.

# Equipped with low voltage protection system, effectively prolong the service life of battery.

# The balance wheel is adjustable (when the wheel is worn, the balance wheel can be adjusted to reach the balance of the electric pallet stacker body) # The die installation design of hydraulic station has the advantages of noise reduction, convenient maintenance and overhaul.

# Electrical modular design, components of the integration of 90%, easy maintenance.

Option: # 1200kg.

Single column walkie stacker with wide view mast and low service weight, mainly used in very confined warehouses and double decker workshops suit for indoor and outdoor using and short-distance traveling operation.

Particularly for low-force withstanding floors.

- - - - SPECIFICATIONS | Model | | CDDRD10 | Load capacity | kg | 1000 | Load center | mm | 600 | Fork hanging distance | mm | 630 | Tyre size, front | mm | 250*70 | Tyre size, rear | mm | 80*70 | Additional wheels (dimensions) | mm | 150*60 | Height, mast lowered | mm | 1980/2330 | Max.

lifting height | mm | 1600/1950 | Height, mast extended | mm | 1980/2330 | Height of tiller in drive position min.

/max.

| mm | 670/1300 | Fork height, lowered | mm | 90 | Overall length | mm | 1780/1860 | Length to face of forks | mm | 708 | Overall width | mm | 820 | Fork dimensions | mm | 60/170/1070(1150) | Width overall forks | mm | 570 | Aisle width for pallets 800*1200 lengthways | mm | 2220 | Turning radius | mm | 1338 | Travel speed, laden/unladen | km/h | 5.3/5.6 | Lift speed, laden/unladen | m/s | 0.11/0.19 | Lowering speed, laden/unladen | m/s | 0.16/0.11 | Battery | V/Ah | 24/65 | Service weight | kg | 580 | - - - -
