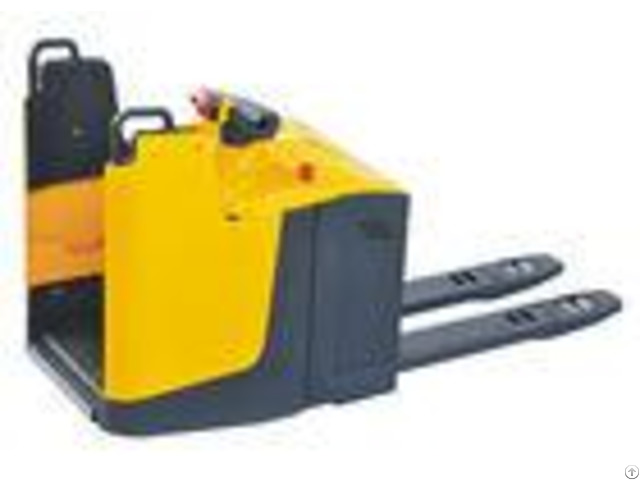

Standing Type Electric Pallet Truck Closed Arm With Fixed Platform Anti Vibration - China

Standing type electric pallet truck with fixed platform and closed protection arm Quick details: Model: Closed Arm Electric Pallet Truck CBD20L Capacity: 2000kg Lowered fork height: 82mm Max.

Lifting height: 202mm Aisle width for pallets, 1000*1200 crossways: 2420/2470/2540mm Aisle width for pallets, 800*1200 lengthways: 2520/2520/2540mm Battery: 24V240(280)AH Service weight: 820kg Advantages: # With Ergonomic designed backrest and handrail.

The symmetry backrest is suitable for different operator's habit choice.

The truck could be alternate operation by both hands which decrease fatigue.

# Side stand operation with comfortable backrest, with capacious operation compartment, comfortable and safety for operation.

# The platform is with good anti-vibration function which is comfortable for the operators.

# Equipped with safety power switch at platform, the truck will be locked when there is no operator.

It improves the safety for the truck.

# With strong power system, the max.

gradeability can achieve 8% with laden and 17% with unladen.

# The straight tappet length can be precise adjustment.

# Fork head fitted with double steel entry rollers, for smoothly enter pallets.

Option: # German Frei handle with both side button located in the front of driver for comfortable operation.

# 320AH battery.

CBD20L Electric pallet trucks are equipped with fixed platform and closed protection arm, with heavy duty design for the space constraints, with middle or high driving speed for long distance transportation.

- - - - SPECIFICATIONS OF SIDE STANDING TYPE ELECTRIC PALLET TRUCK | Model | | CBD20L | Load capacity | kg | 2000 | Load center | mm | 600 | Load distance | mm | 815/865/935 | Fork height, lowered | mm | 82 | Tyre size, front | mm | 250*80 | Tyre size, rear | mm | 82*126(98) | Additional wheels (dimensions) | mm | 127*57 | Max.

lifting height | mm | 202 | Overall length | mm | 2220/2270/2340 | Length to face of forks | mm | 1120 | Overall width | mm | 773 | Fork dimensions | mm | 54/180/1100(1150/1220) | Width overall forks | mm | 520/550/650/685 | Aisle width for pallets 1000*1200 crossways | mm | 2420/2470/2540 | Aisle width for pallets 800*1200 lengthways | mm | 2520/2520/2540 | Turning radius | mm | 1970/2020/2090 | Travel speed, laden/unladen | km/h | 9.5/10 | Battery | V/Ah | 24/280 | Service weight | kg | 820 | - - - -
